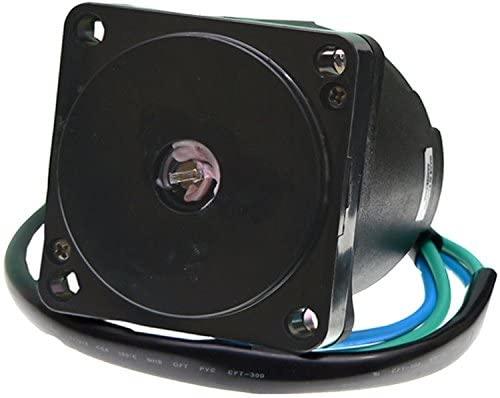

Power Tilt Trim Motor for Evinrude, Johnson, OMC, Yamaha

In stock
Marine Trim Motor
CM Marine
43022025-0039TRM
$279.99
$279.99

Specifications:
Voltage: 12
Rotation: Reversible
Field Hsg OD: 76mm / 2.992in
Overall Length: 103mm / 4.055in
Shaft OD: 8mm / 0.315in
Shaft Notes: 2.6mm Drive, Tang
Approximate Weight: 3.09 lbs / 1.40 kg
Includes Shaft Adapter for Hollow Shaft Applications@ 2-Wire Configuration@ Female Spade Terminals@ (4) 7mm Unthreaded Mounting Holes

Replaces these part numbers:
API MARINE PT303NM, PT607NM
ARCO MARINE 6241
LESTER 10816, 10817
OMC 434495, 434496, 438529, 438531
SIERRA MARINE 18-6780
WAI 10816N-L, 82-7854, 82-7856
YAMAHA 64E-43880-00-00, 64E-43880-01-00, 67H-43880-00-00, 67H-43880-04-00
Honda 36120-ZW1-701 36120-ZW1-703

Applications:
MAKE TYPE MODEL YEAR ENGINE
EVINRUDE Tilt & Trim All Models 1991 - 1994 120 HP - 140HP
EVINRUDE Tilt & Trim All Models 91-On 50 HP - 225 HP
JOHNSON Tilt & Trim All Models 1991 120 HP
JOHNSON Tilt & Trim All Models 1991 140 HP
JOHNSON Tilt & Trim All Models 1992 120 HP
JOHNSON Tilt & Trim All Models 1992 140 HP
JOHNSON Tilt & Trim All Models 1993 120 HP
JOHNSON Tilt & Trim All Models 1993 140 HP
JOHNSON Tilt & Trim All Models 1994 120 HP
JOHNSON Tilt & Trim All Models 1994 140 HP
JOHNSON Tilt & Trim All Models 91-On 115 HP
JOHNSON Tilt & Trim All Models 91-On 130 HP
JOHNSON Tilt & Trim All Models 91-On 150 HP
JOHNSON Tilt & Trim All Models 91-On 175 HP
JOHNSON Tilt & Trim All Models 91-On 200 HP
JOHNSON Tilt & Trim All Models 91-On 225 HP
JOHNSON Tilt & Trim All Models 91-On 50 HP (3cyl)
JOHNSON Tilt & Trim All Models 91-On 60 HP (V4)
JOHNSON Tilt & Trim All Models 91-On 70 HP
JOHNSON Tilt & Trim All Models 91-On 90 HP
OMC Tilt & Trim All Models 1991 - 1994 120 - 140 HP
OMC Tilt & Trim All Models 91-On 50 - 225 H.P
YAMAHA Tilt & Trim Various Models 1997 - 2002 115-225 H.P.

Fits other Engines Please ask if yours not listed.
1 Year Warranty
