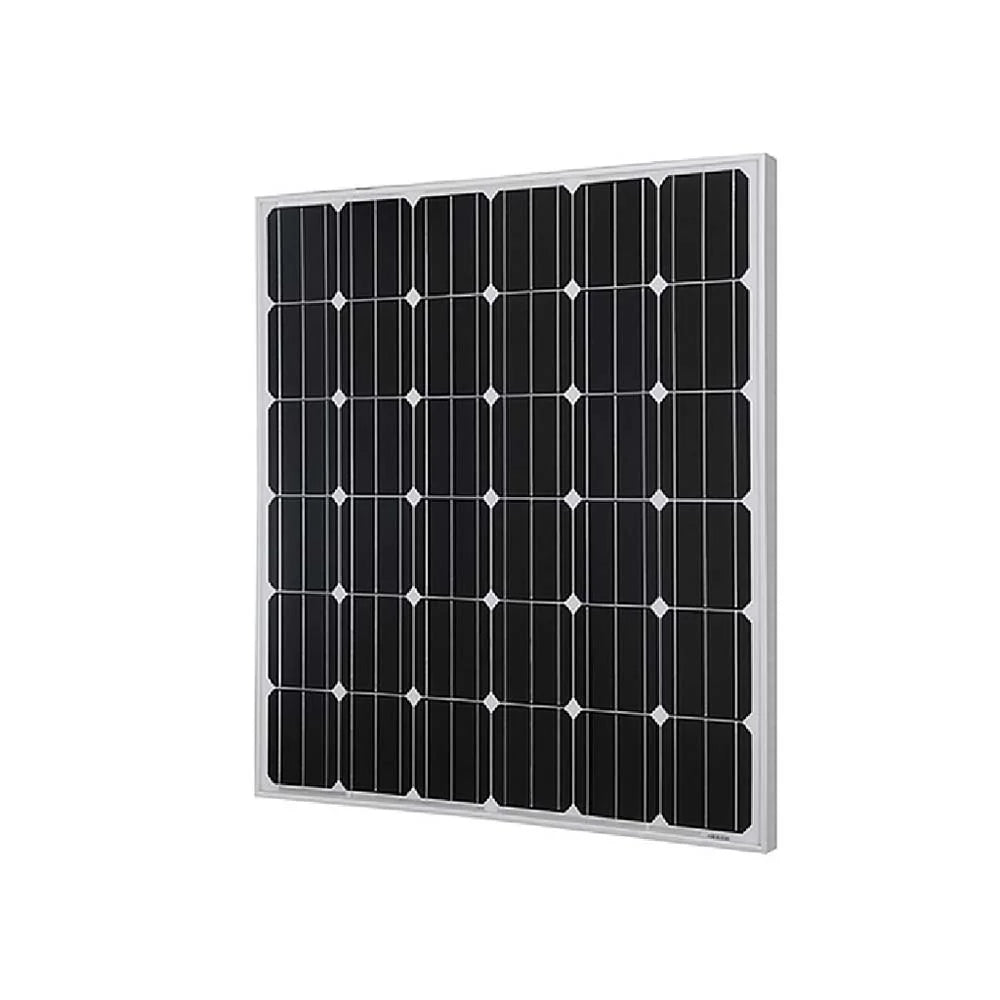

A compact, rugged 30 W Victron panel for maintaining and topping up 12V batteries on boats, campervans, and off-grid setups. Monocrystalline cells deliver solid output in a small footprint, and the anodised aluminium frame with tempered glass is built to handle NZ conditions. A sealed junction box and high-performance bypass diodes help reduce power loss in partial shade.

Key features

• Reliable 30 W mono module for 12 V systems; excellent low-light performance and high temperature tolerance.

• Durable build: anodised aluminium frame, high-transmission tempered glass, multi-layer EVA backsheet.

• Sealed, waterproof junction box with bypass diodes; designed for easy roof/rail mounting.

Electrical

• Nominal power (PMPP): 30 W

• Vmp / Imp: 18.7 V / 1.61 A

• Voc / Isc: 22.87 V / 1.76 A

• Max system voltage: 1000 V DC

• Temp coefficients: MPP −0.45%/°C, Voc −0.35%/°C, Isc +0.04%/°C

Mechanical

• Dimensions: 560 × 350 × 25 mm

• Weight: 2.2 kg

• Frame: Aluminium

• Operating temperature: −40 °C to +85 °C

• Surface load rating: 200 kg/m²; hail 23 m/s (7.53 g)

Warranty

• Product: 5 years

• Performance: 25-year power output warranty

Datasheet: Victron Blue Solar Panels

Image may show similar product from the same series.
