Product Specs

• Item Condition: Aftermarket Part

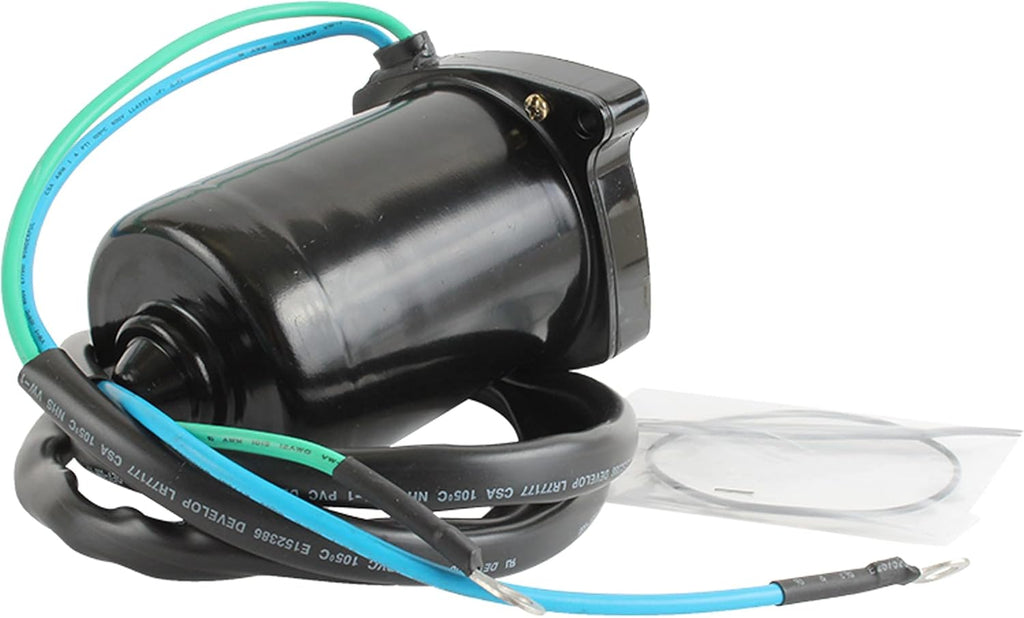

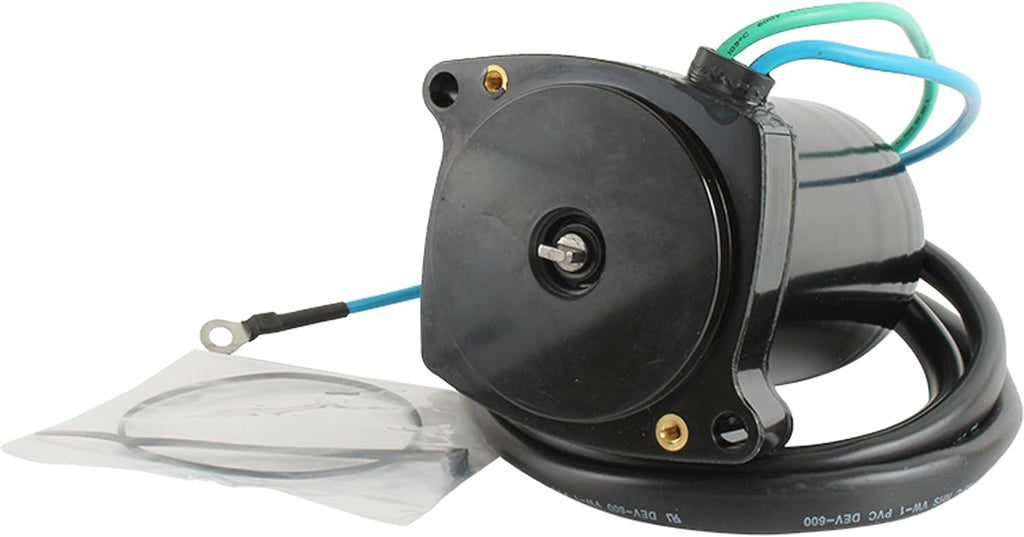

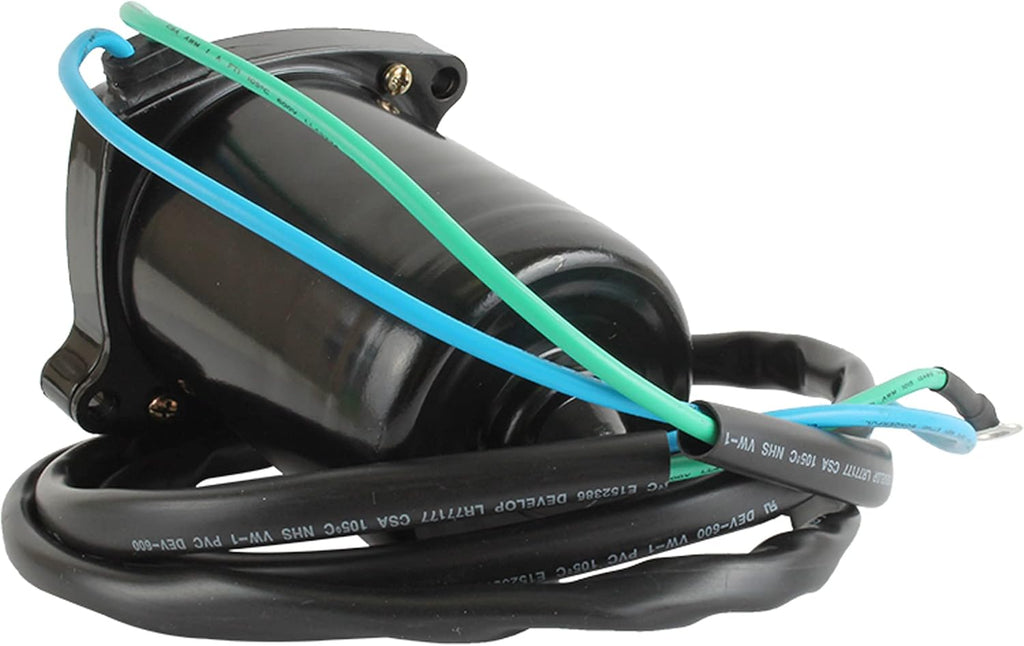

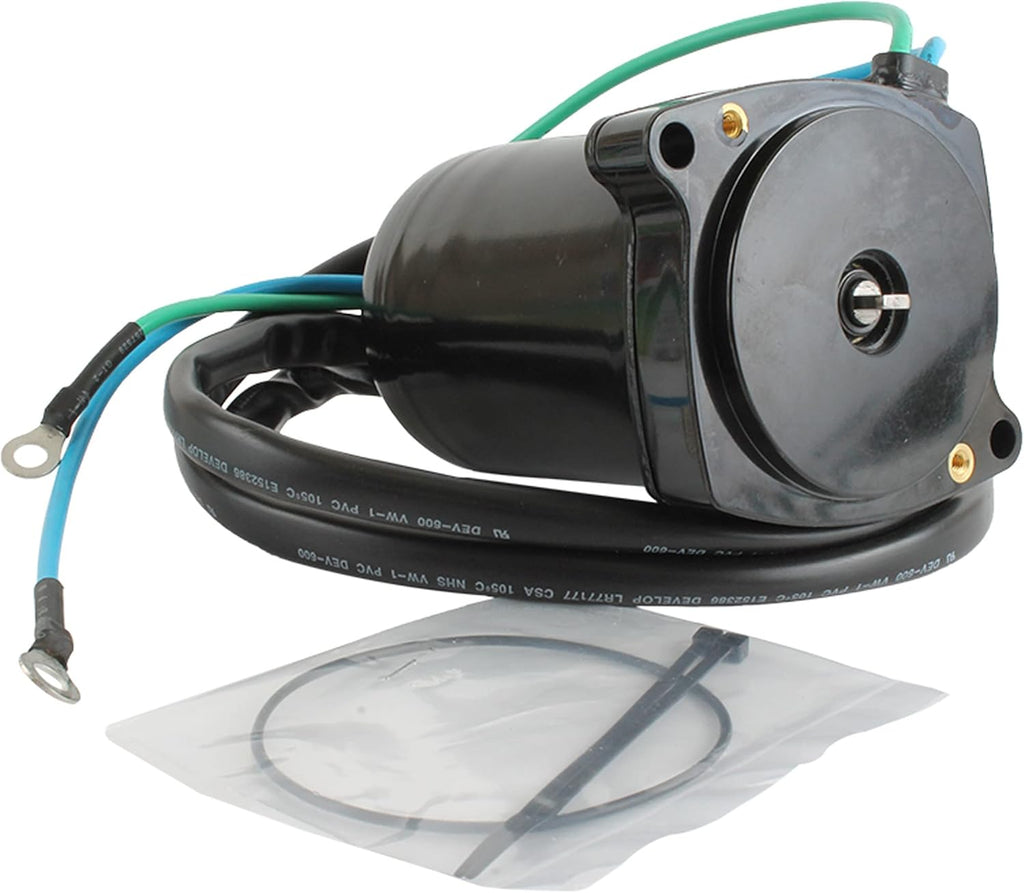

• Unit Type: Tilt & Trim Motor
• Voltage: 12V
• Rotation: RE
• Dimensions:
  • OD: 72.15 mm (2.841 in)
  • Shaft OD: 8 mm (0.315 in)
  • Length: 139 mm (5.472 in)
  • Shaft: 2.5 mm Tang
  • Term Size (x2): 6.5 mm Ring Term
  • Mounting Hole C-to-C: 98.5 mm
  • Flange to Rear: 130 mm
  • Registry OD: 69.8 mm
  • Mounting Holes (x2): 7.5 mm
• Includes: Harness & O-Ring

Fits
Yamaha 300–350HP Outboard Motors (2008–2018):

• F300TUR / F300TXR – 2008–2010 (300HP)
• LF300TUR / LF300TXR – 2008–2010 (300HP)
• F350TUR / F350TXR – 2008–2010 (350HP)
• LF350TUR / LF350TXR – 2008–2010 (350HP)
• F350UCA / LF350UCA – 2011–2012 (350HP)
• F350UCB / LF350UCB – 2013–2016 (350HP)
• F350UCC / LF350UCC – 2017–2018 (350HP)
• F350XCA / LF350XCA – 2011–2012 (350HP)
• F350XCB / LF350XCB – 2013–2016 (350HP)
• F350XCC / LF350XCC – 2017–2018 (350HP)

Fits other engines – please ask if yours is not listed.

Warranty: 1 Year
