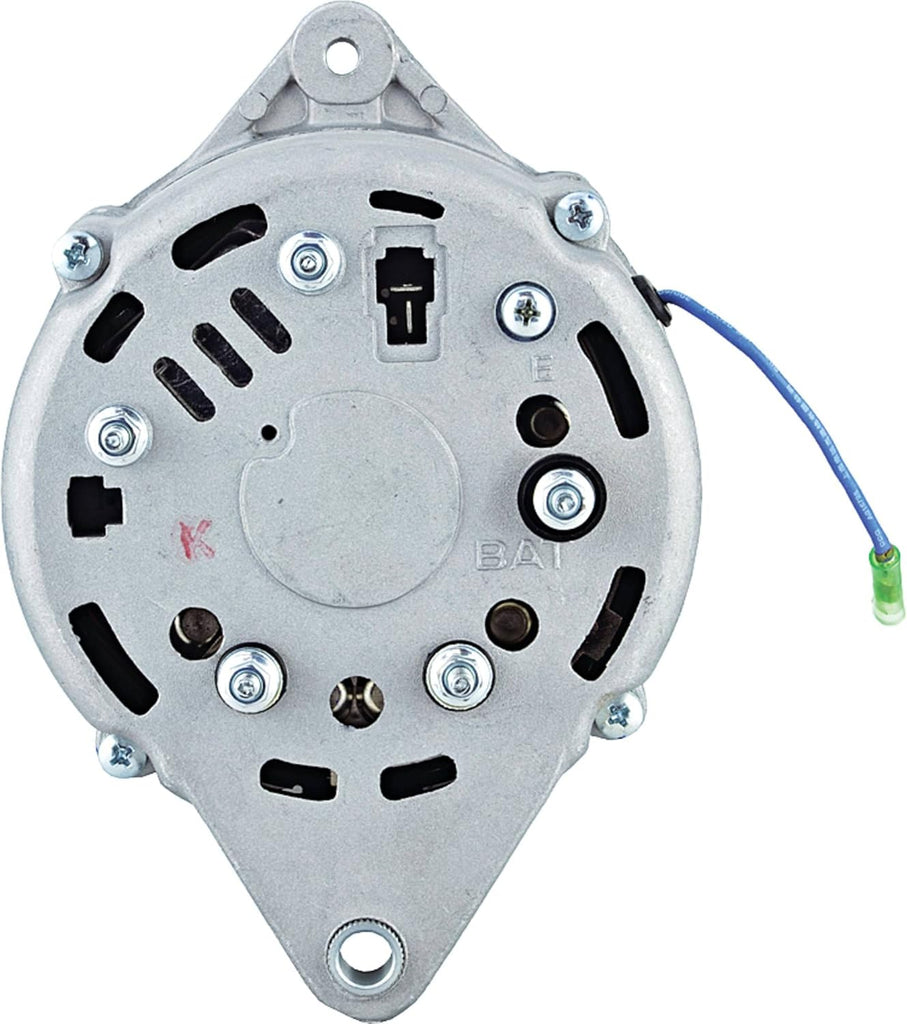

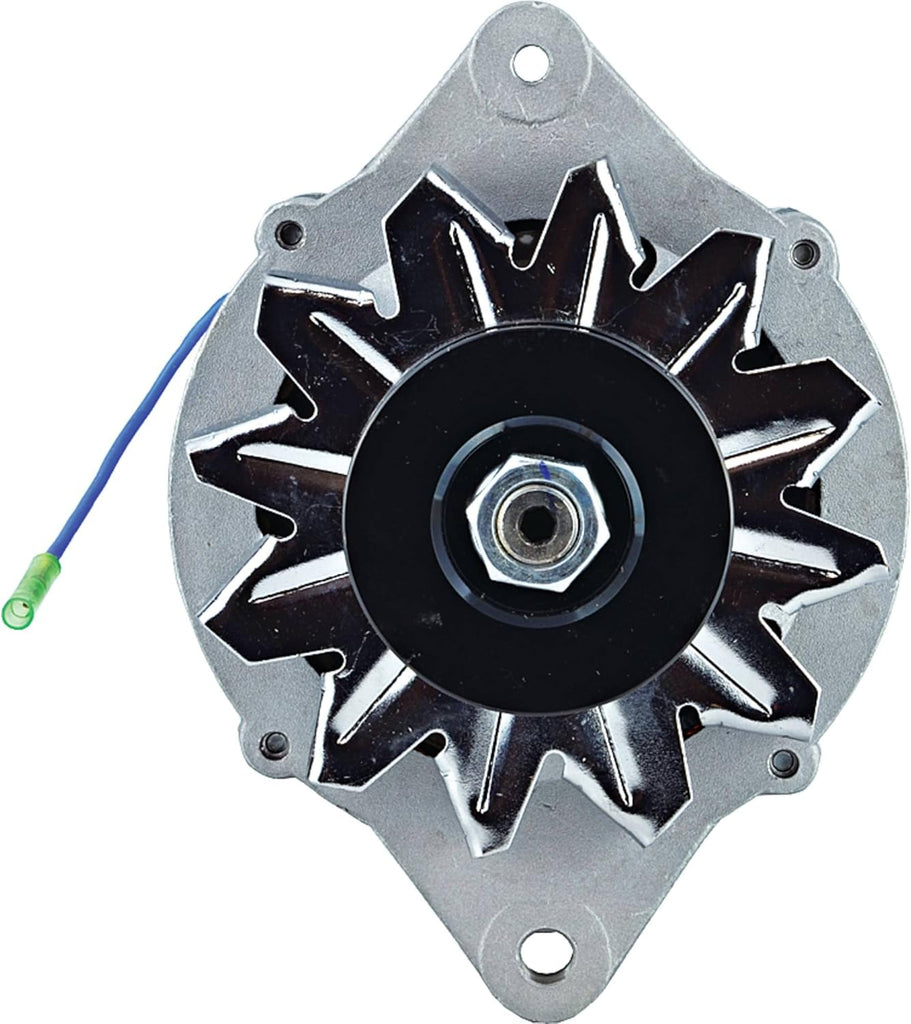

Alternator for Yanmar 3JH2, 3JH2BE, 3JH2E 1991-1999, 3JH3 1999-2003

Out of Stock. Available to order (Approx 2-4 weeks)
Marine Alternator
CM Marine
40044130-YNM
$399.99

Compatible With/Replacement For: Yanmar 3JH2 1991-1999, 3JH2BE 1991-1999, 3JH2E 1991-1999, 3JH3 1999-2003, 3JH3E, 3JH3E-YEU, 3JH4E, 3JH4E 2003, 3YM20, 3YM20 2004, 3YM30, 3YM30 2004, 4JH-TE, 4JH-TE 1982, 4JH2-CE, 4JH2-CE 1988, 4JH2-DTE, 4JH2-DTE 1988, 4JH2-E, 4JH2-E 1988, 4JH2-HTE, 4JH2-HTE 1988, 4JH2-TE, 4JH2-TE 1988, 4JH2-UTE, 4JH2-UTE 1988, 4JH3-CE 1994-2003, 4JH3-DTE 1994-2003, 4JH3-HTE 1994-2003, 4JH3-TCE 1994-2003, 4JH3-TE 1994-2003, 4JH3E 1994-2003, 4JHE, 4LH-DTE, 4LH-DTE 1987, 4LH-HTE

Specifications:
Item Condition Aftermarket Part
Description Alternator
Critical Note Fully Insulated@ Terminal ID: Light / Relay@ The Relay Terminal Voltage is 1.25V Static and Battery Voltage When Running@ Blue Wire is Stator Voltage
Volt 12
Amps 80
Condition New
Regulator Clock 0.520833333333333
Quality Type Standard
Mount Hole Id 1 M8x1.25
Mount Hole 1 Type Threaded
Mount Hole 2 Type Unthreaded
Mount Hole Id 3 10.400mm
Mount Hole 3 Type Unthreaded
Mounting Ear Thickness 0.551"
Mounting Ear Thickness 14mm
Mounting Ear 2 Thickness 0.551"
Mounting Ear 2 Thickness 14mm
Mounting Ear 3 Thickness 0.591"
Mounting Ear 3 Thickness 15mm
Fan Location External
Regulator Location Internal
Terminal ID 2 B+
Terminal 2 Size M5x0.8
Polarity Insulated
Number Of Grooves 1
Pulley Type Solid
Pulley Outer Diameter 2.913"
Pulley Outer Diameter 74mm
Warranty 1 Year
Notes 1/2" Belt Width Pulley


REPLACES THESE PART NUMBERS

Arrowhead 400-44130
J&N Electrical Products 400-44046
Lester 12272
Sierra Marine 18-6278, 18-6297, 18-6929
Yanmar 119573-77200, 119573-77201, 129470-77200

1 Year Warranty
