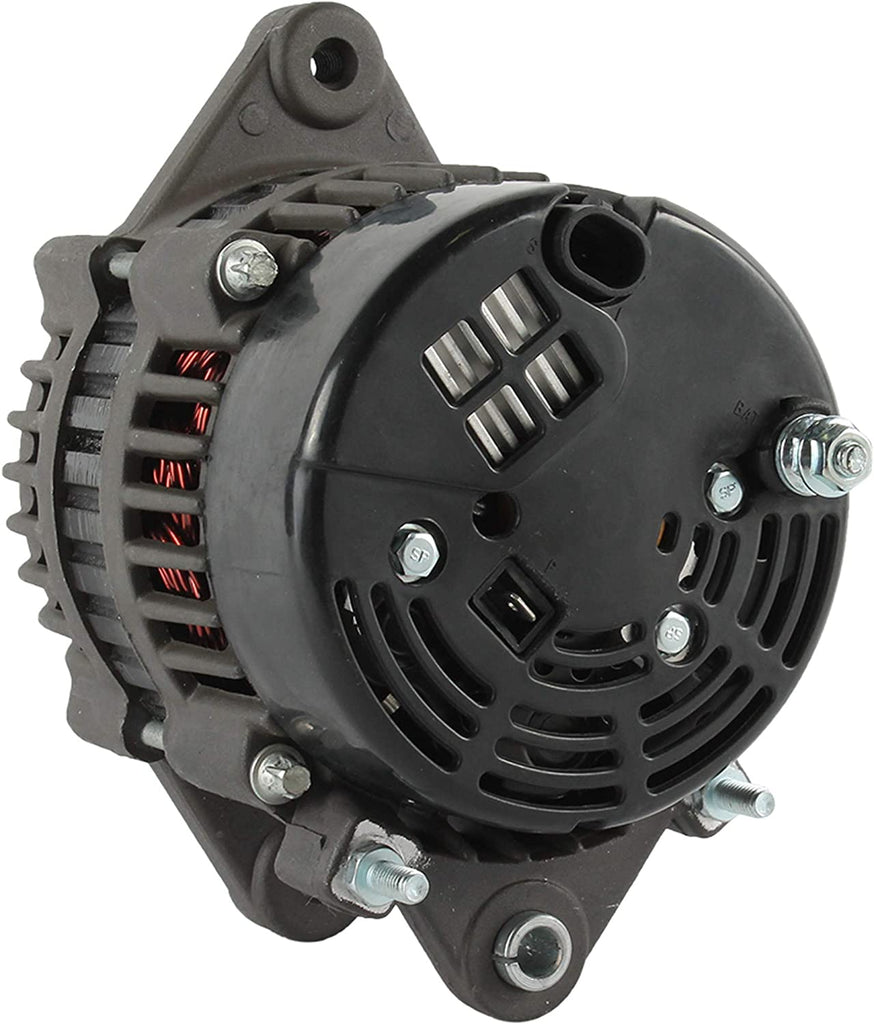

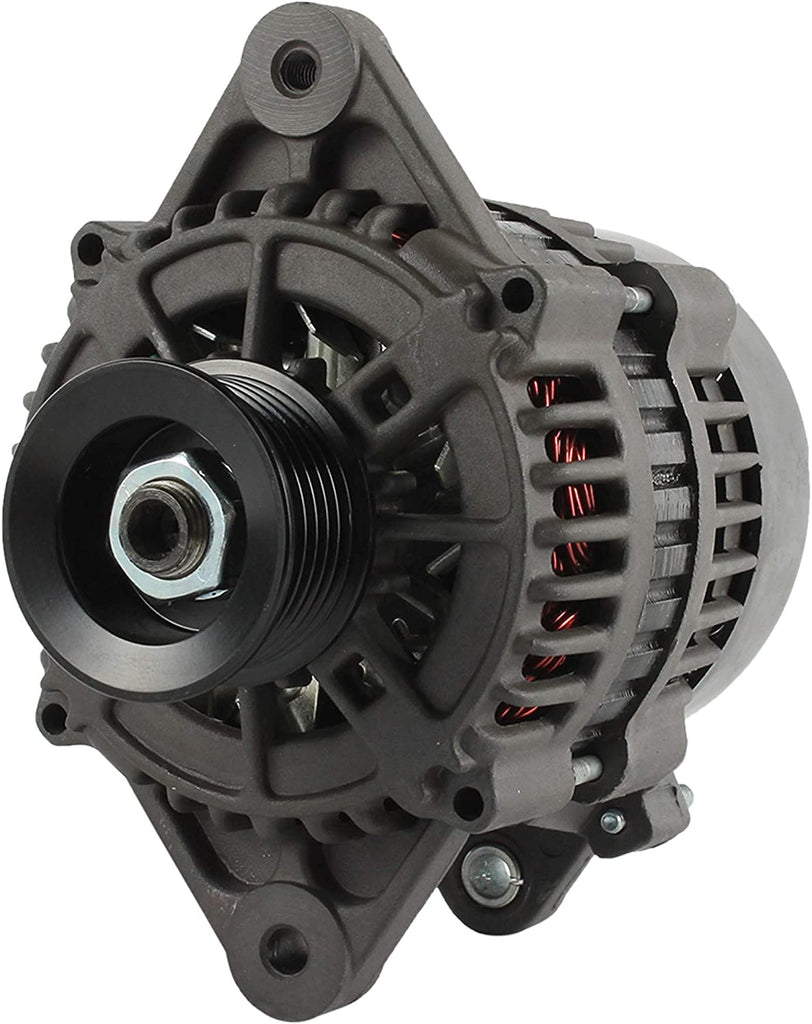

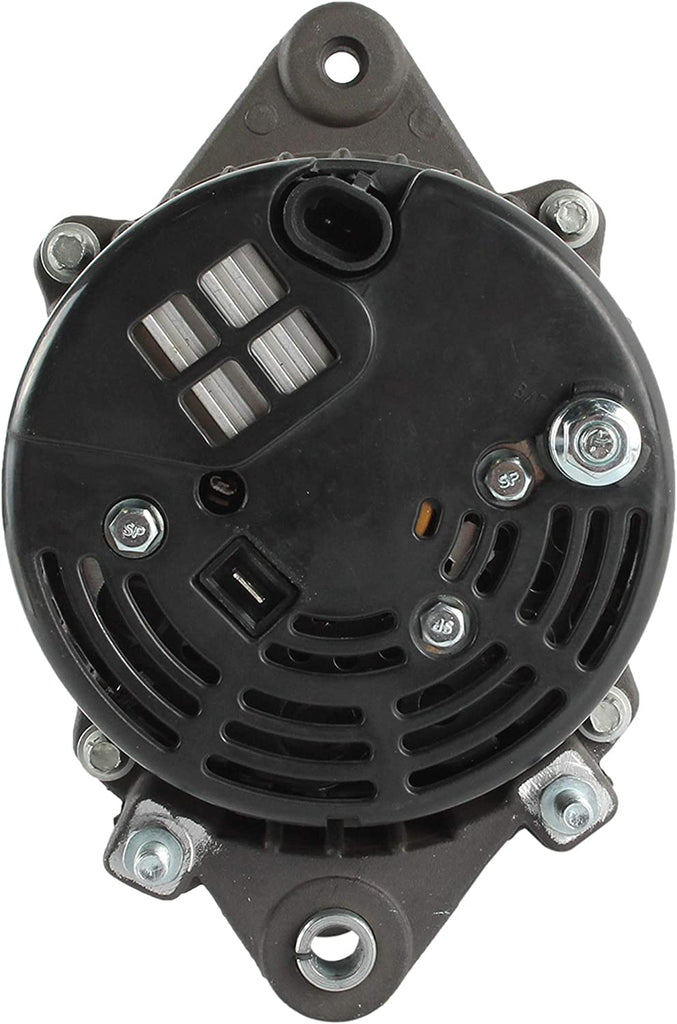

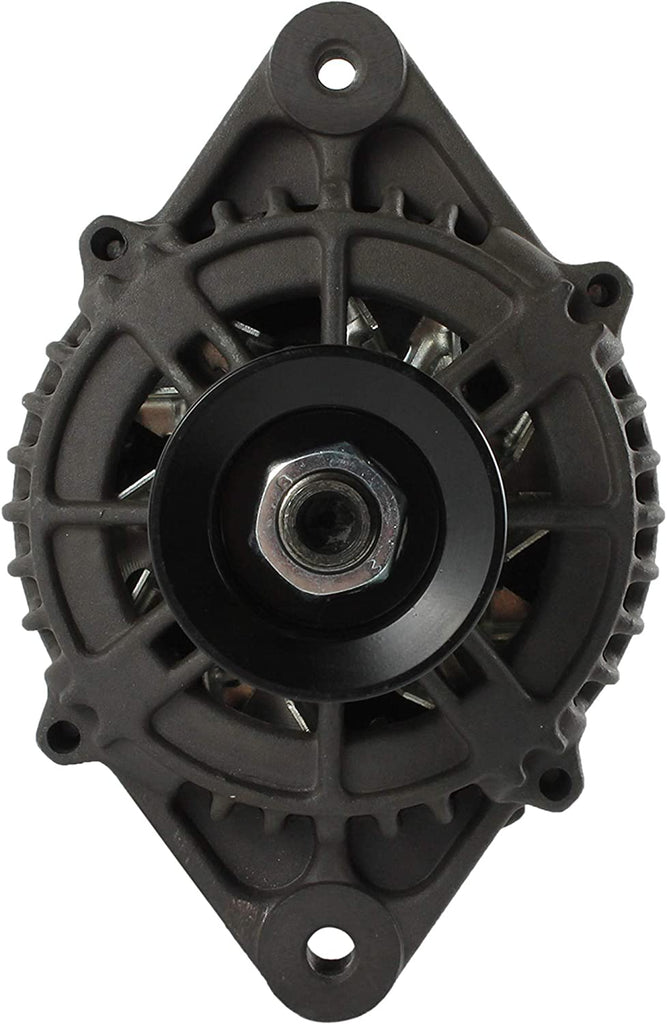

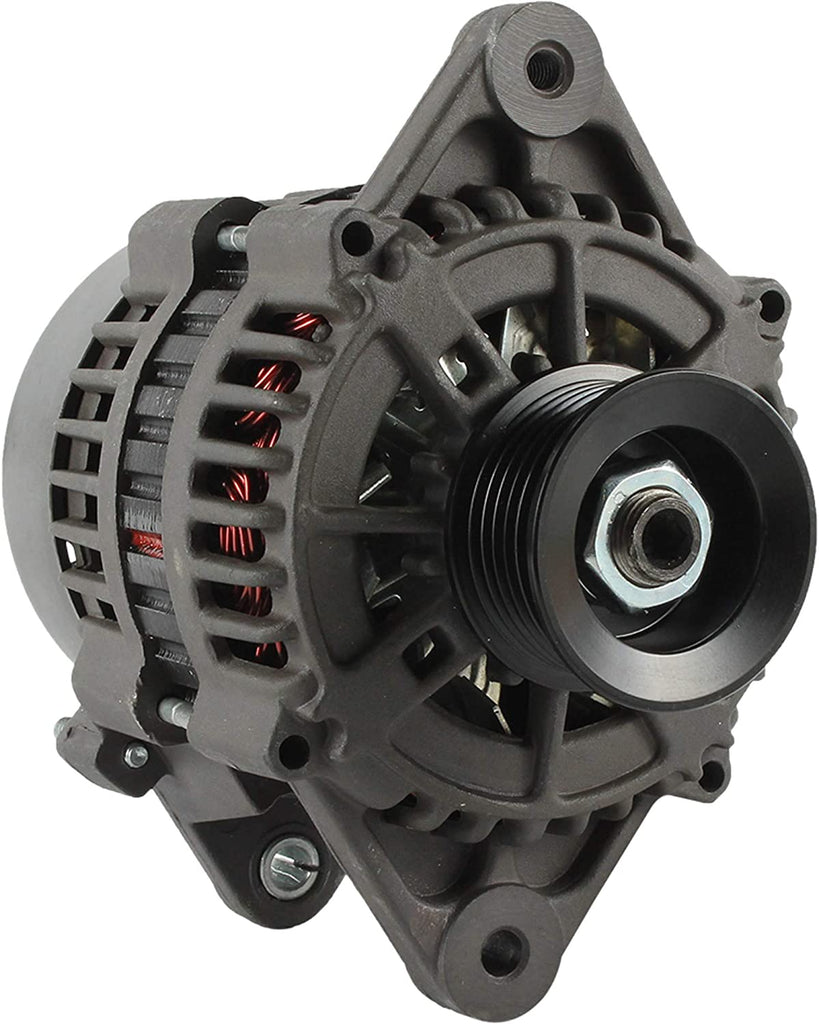

Brand New Alternator for Mercruiser Engines - High Output 105Amps
350 Mag MPI, 5.7L EFI, 6.2L BS MPI
Note: Any High Amp Upgrade Needs to Be Professionally Installed, With Special Attention Paid to the Size of the Load Carrying Cables, Battery Condition, and Clean Connections
PRODUCT SPECS
| Item Condition | Aftermarket Part |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 105 |
| Clock | 12 |
| Pulley Class | S6 |
| Regulator | IR |
| Fan Type | IF |
| Fits | MARINE APPLICATIONS 6-GROOVE PULLEY 50mm OD |
Replaces these part numbers:
ARCO MARINE: 20815
DELCO: 19020611
MERCURY MARINE: 863077-1, 863077T
400-12408
Applications:
Mercruiser Marine
HI-PERFORMANCE ENGINES
Model 500 EFI GM 8.2L - 502ci - 8cyl 2000-2002
Model 525 EFI GM 8.2L - 502ci - 8cyl 2000-2002
Model 600SCI GM 8.2L - 502ci - 8cyl
Model 662SCI
Model 700SCI
INBOARD ENGINES
Model 350 Mag MPI (Gen +) GM 5.7L - 350ci - 8cyl
Model 350 Mag MPI Horizon GM 5.7L - 350ci - 8cyl
Model 5.7L EFI (Gen +) GM 5.7L - 350ci - 8cyl
Model 5.7L MIE GM 5.7L - 350ci - 8cyl
Model 8.1S HO GM 8.1L - 496ci - 8cyl
Model 8.1S Horizon GM 8.1L - 496ci - 8cyl
Model MX 6.2L MPI GM 6.2L - 377ci - 8cyl
Model MX 6.2L MPI Horizon GM 6.2L - 377ci - 8cyl
SKI ENGINES
Black Scorpion Ski (Gen +) GM 5.7L - 350ci - 8cyl
Model 5.7L Ski (CARB) GM 5.7L - 350ci - 8cyl
Model MX 6.2L BS MPI Ski GM 6.2L - 377ci - 8cyl
STERN DRIVE
Model 350 Mag MPI Alpha & Bravo GM 5.7L - 350ci - 8cyl
Model 350 Mag MPI Hor Alpha & Bravo GM 5.7L - 350ci - 8cyl
Model 4.3L (Carb.) Alpha & Bravo GM 4.3L - 262ci - 6cyl
Model 4.3L (MFI) Alpha & Bravo GM 4.3L - 262ci - 6cyl
Model 4.3L MPI GM 4.3L - 262ci - 6cyl 01-02
Model 496 Mag GM 8.1L - 496ci - 8cyl
Model 496 Mag HO GM 8.1L - 496ci - 8cyl
Model 5.0L (2-BBL) (Gen +) GM 5.0L - 305ci - 8cyl 98-02
Model 5.0L Carb Alpha & Bravo GM 5.0L - 305ci - 8cyl
Model 5.0L MPI Alpha & Bravo GM 5.0L - 305ci - 8cyl
Model 5.7L (2-BBL) (Gen +) GM 5.7L - 350ci - 8cyl 98-02
Model 5.7L (Carb.) Alpha & Bravo GM 5.7L - 350ci - 8cyl
Model MX 6.2L MPI GM 6.2L - 377ci - 8cyl
Model MX 6.2L MPI Horizon GM 6.2L - 377ci - 8cyl
All items shipped by Track and Trace Courier
12-Month Warranty
CM Marine
Auckland
- Our part number: 40012408-0452ADR
Replaces these part numbers: ARCO MARINE: 20815 DELCO: 19020611 MERCURY MARINE: 863077-1, 863077T 400-12408
