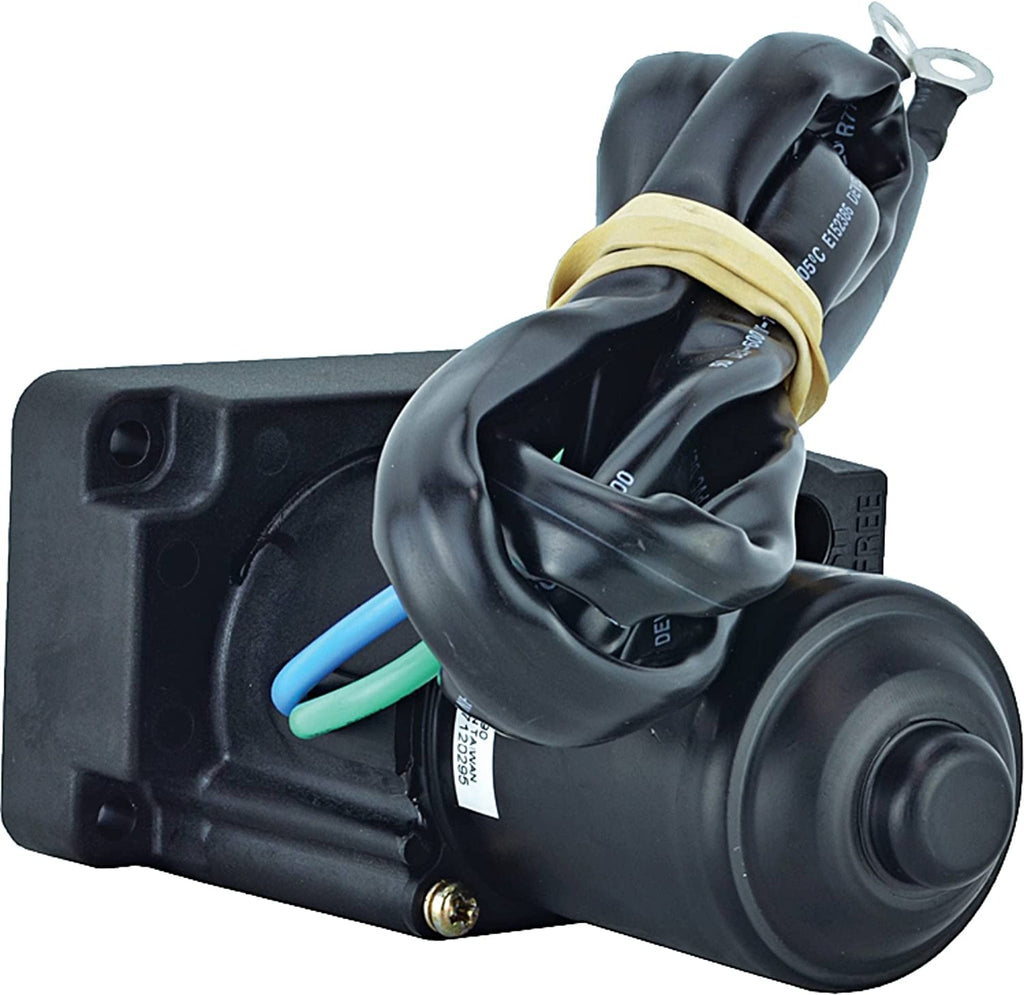

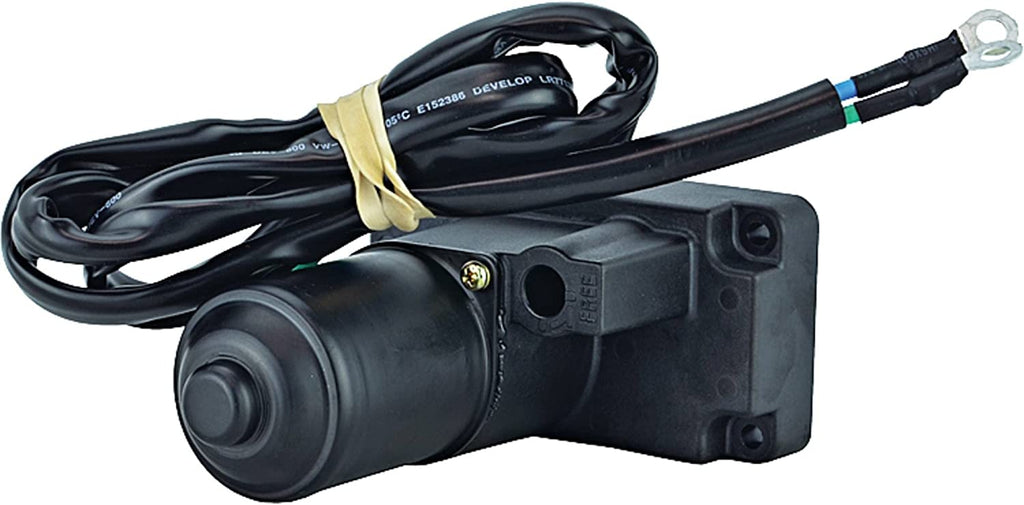

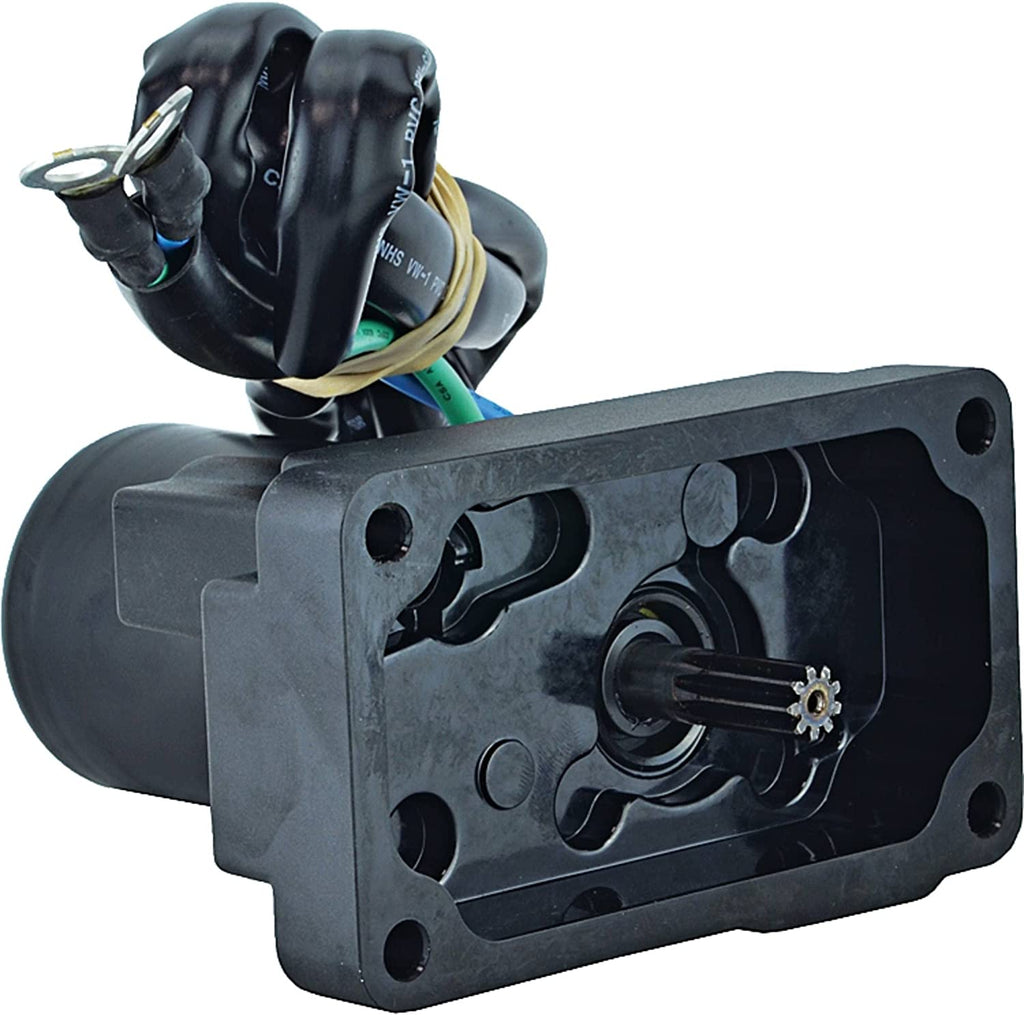

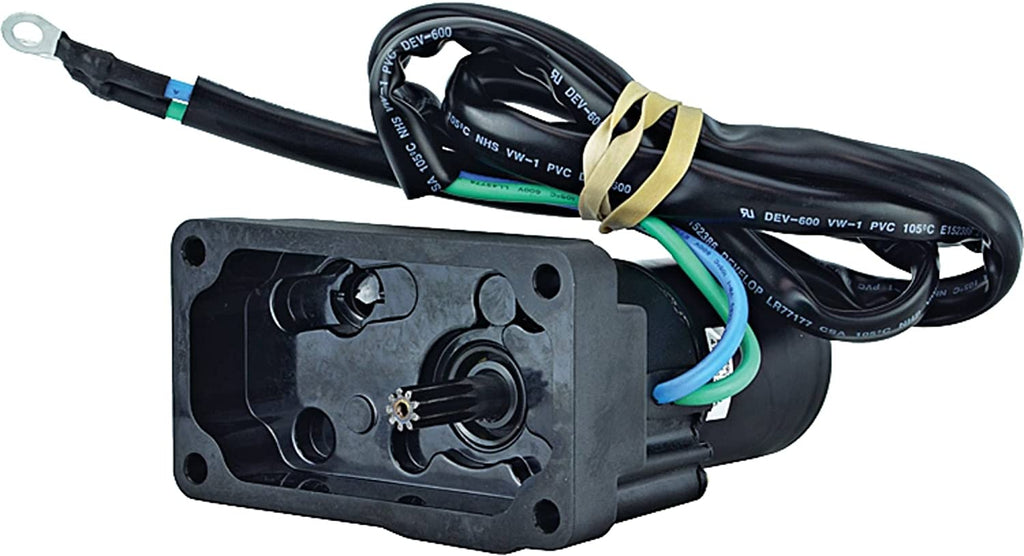

Marine Trim Motor for 15HP Yamaha F15CELH, F15CMLH, F15CESH
$329.99
Applications:
YAMAHA Tilt & Trim Various Models 2013 -2018 ONWARDS 150H.P.
F150JA, F150JB, F150LA, F150LB, F150TJR, F150TLR, F150TXR, F150XA, F150XB, LF150TXR, LF150XA, LF150XB
Specifications:
| Item Condition | Aftermarket Part |
| Unit Type | Tilt & Trim Motor |
| Voltage | 12 |
| Rotation | RE |
| Teeth | 9 |
| Dimension | Replacement Unit:, OD: 47.3mm, Shaft OD: 8.6mm , Length: 134mm, Terminal Size (2): 6.4mm, Shaft: 9-Tooth, Notes:, 42.5" Harness, Shaft Protrudes From Housing, Gear Shaft 28mm OAL (Exposed From Surface), (4) 5.8mm ID Unthreaded Mtg. Holes, |
| Fits | Yamaha 15-20HP Outboard Motors 2001-17 |
Replaces these part numbers:
| ARROWHEAD | 430-22155 |
| J & N | 430-22155 |
| Yamaha | 69A-43880-00-00, 69A-43880-01-00 |
Fits other Engines Please ask if yours not listed.
1 Year Warranty
CM Marine
Auckland
YAMAHA F15CELH 2007-2008, F15CESH 2007-2008, F15CESH 2011-2011, F15CMLH 2007-2008, F15CMSH 2007-2008, F15CPLH 2007-2008, F15CPLH 2009-2011, F15LPHA 2012-2017, F15PLH 2001-2007, F15PLR 2001-2007, F20LPA 2012-2017, F20LPHA 2012-2017, F20PLH 2007-2008, F20PLH 2009-2011, F20PLR 2007-2008, F20PLR 2009-2011
