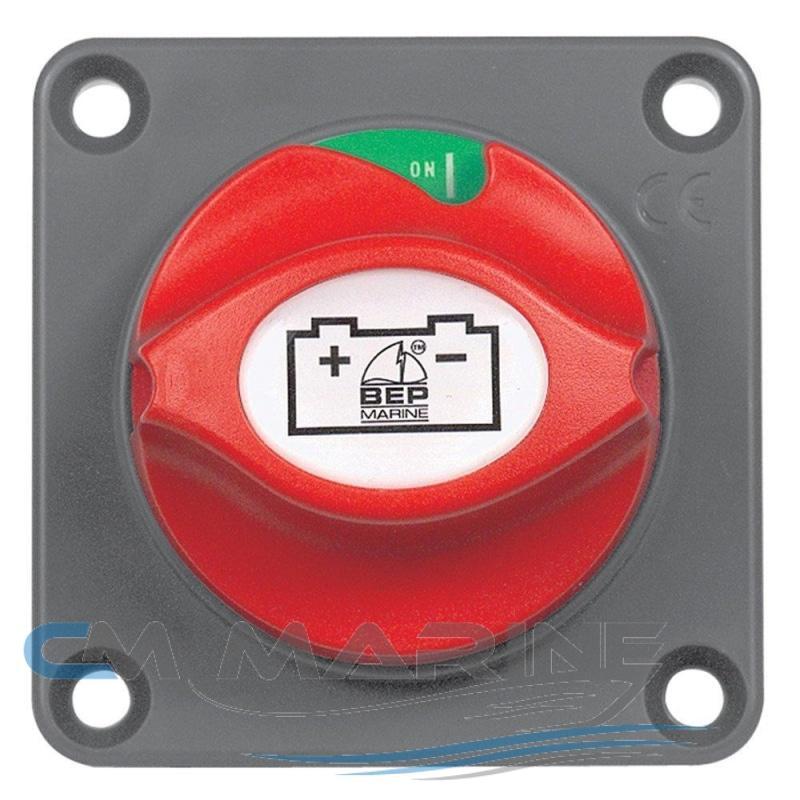

The BEP 701PM Panel Mount Battery Switch Single Battery Bank is the latest addition to the panel mount range of battery switches. This one is specifically designed for panel mount applications. This battery switch is moulded in a high strength, fibre reinforced plasic with high temperature performance and great resistance to chemicals that damage other plastic types.
BEP 701PM Panel Mount Battery Switch Features:
Fits standard BEP battery switch label range.
CSK recessed for surface mount application
Standard 2 1/16" hole cut out (Same as standard gauge hole)
Full access for cables with no restrictions
Fit into Contour Connect Panel
BEP 701PM Panel Mount Battery Switch Specifications:

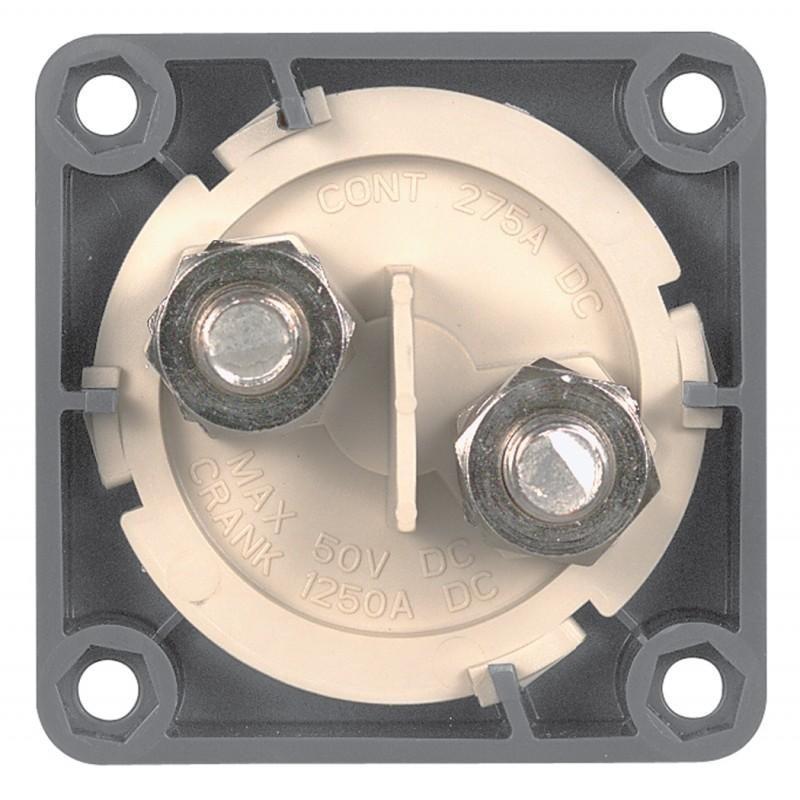

Continuous Rating: 275 Amps DC
Intermittent Rating: 455 Amps DC
Cranking (Peak) Rating: 1250 Amps DC
Voltage Rating: 48 Volts DC
Mounting: Recessed or Surface
Termination Stud Size:
2 x 10 mm (3/8 inch)
Dimensions: 69 x 69 x 75h mm (2.75 x 2.75 x 3h inches)
