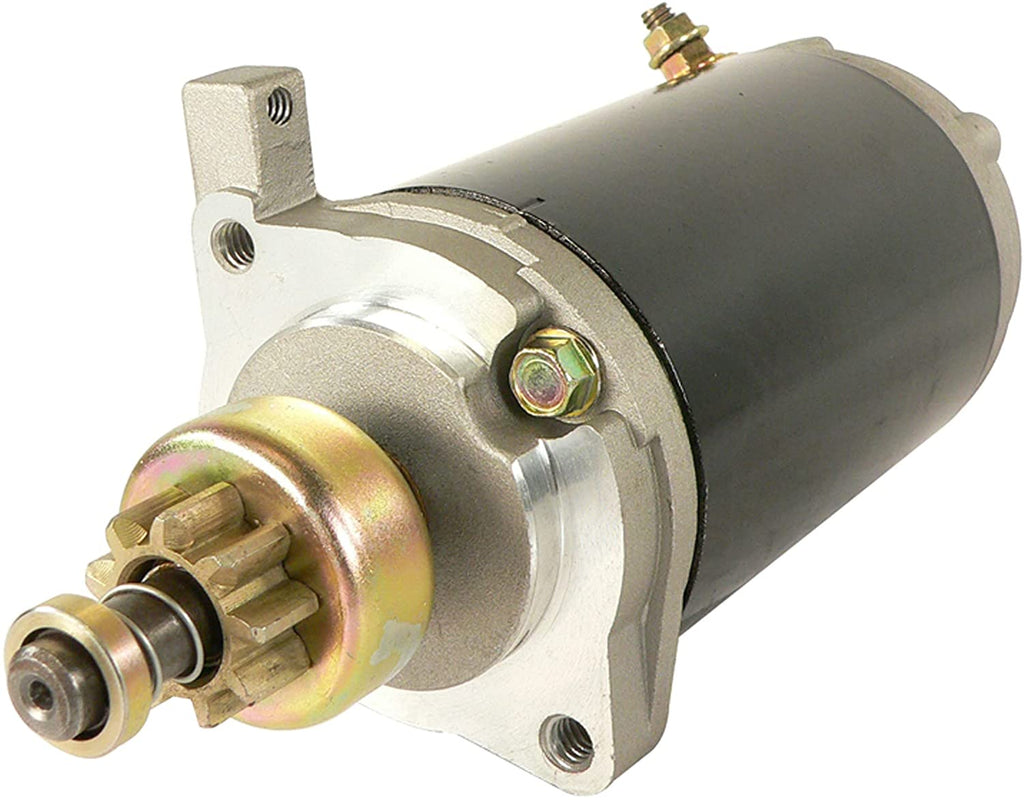

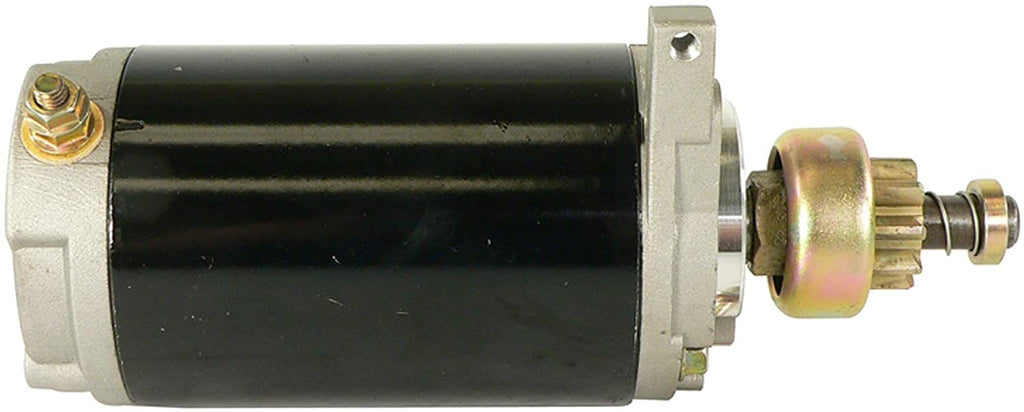

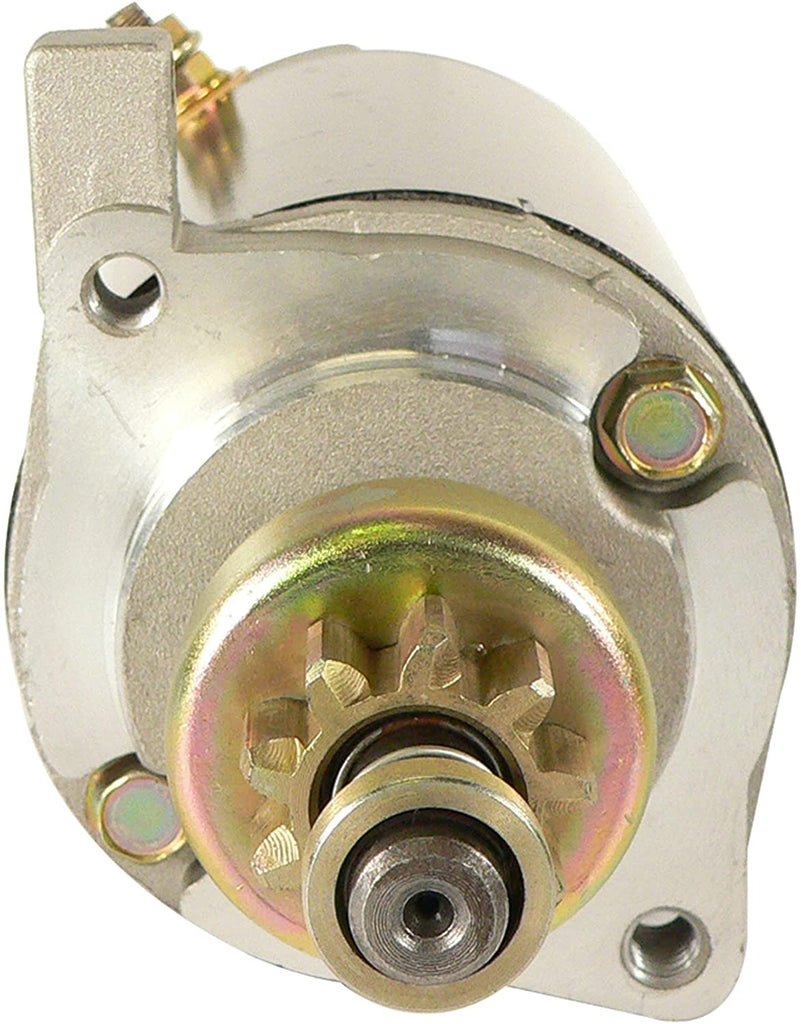

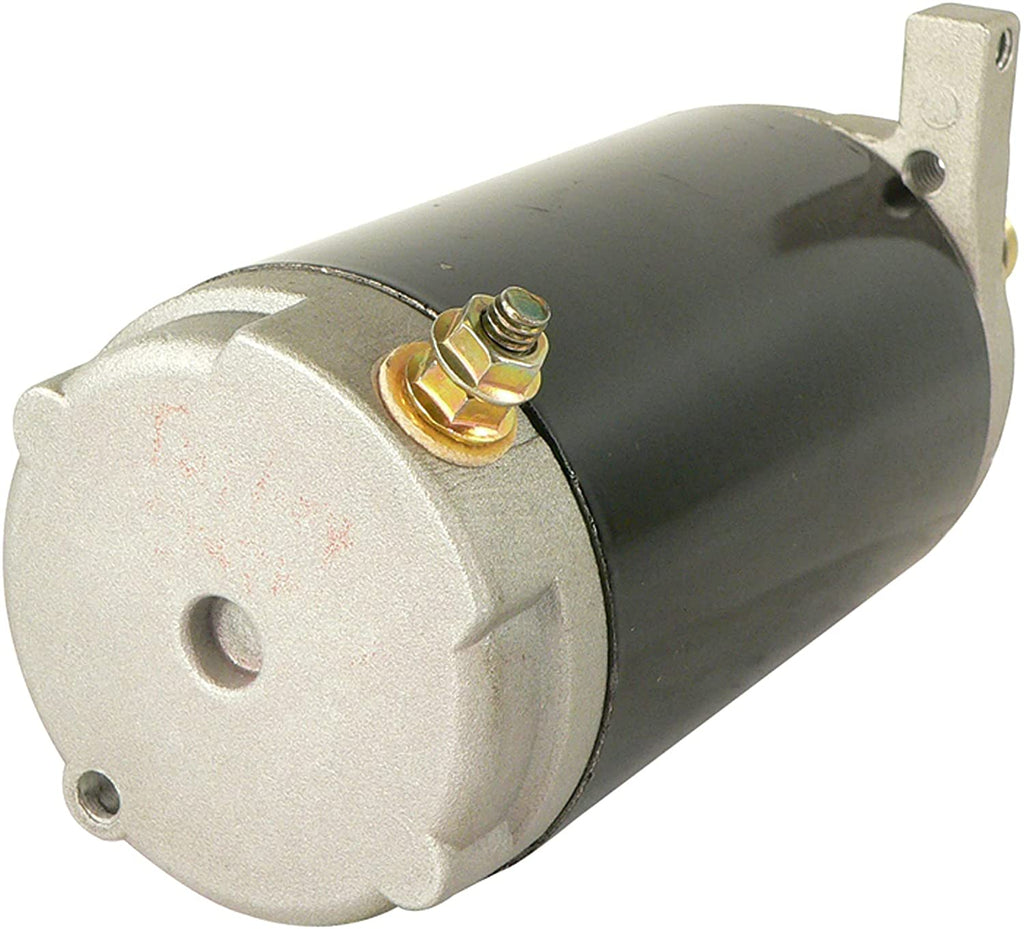

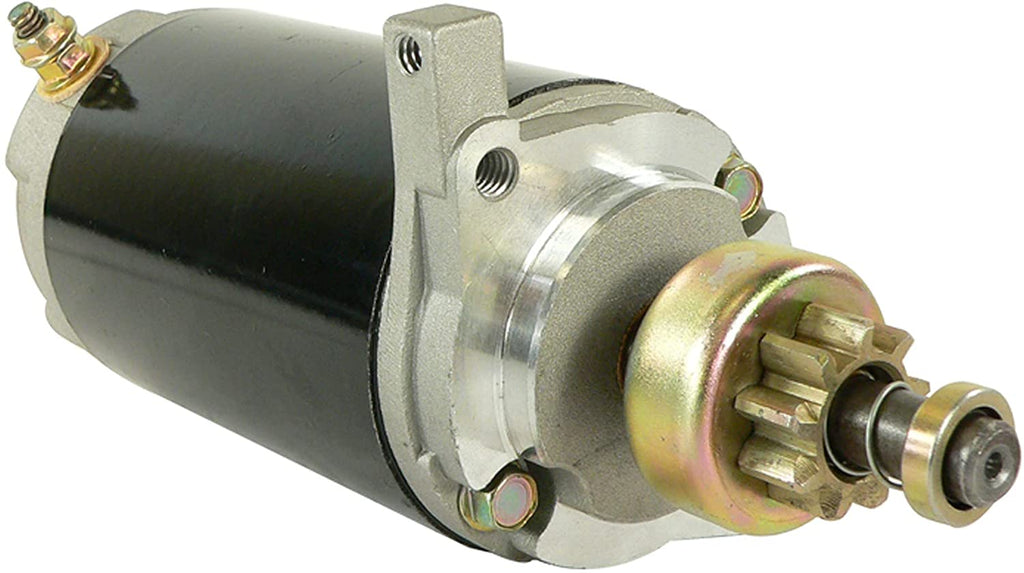

Starter for Mercury Outboard 30 35 40 50 HP

In stock
Marine Starter Motor
CM Marine
41021000-0004SAB
$279.00
$279.00

SPECIFICATIONS

  • VOLT 12
  • ROTATION DIRECTION Counter Clockwise
  • ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
  • NUMBER OF TEETH 9
  • GEAR OD 1.126"
  • GEAR OD 28.600mm
  • MOUNT HOLE ID 15/16-18
  • MOUNT HOLE 1 TYPE Threaded
  • MOUNT HOLE ID 25/16-18
  • MOUNT HOLE 2 TYPE Threaded
  • MOUNT HOLE ID 312-24
  • MOUNT HOLE 3 TYPE Threaded
  • 4.11" / 104.6mm Long Field Case
Cross Reference
  • ARROWHEAD SAB0004
  • DELCO 1113552
  • EMP 4-5601
  • J&N ELECTRICAL PRODUCTS 410-21000
  • JANNCO 410-21000R
  • LESTER 5400
  • MERCURY MARINE 50-30829, 50-32403, 50-37345, 50-38890, 50-38890A1, 50-55601A2, 50-55801A, 55601A2
  • SIERRA MARINE 18-5601, 18-5641
  • UNITED TECHNOLOGIES 0262640, 0996140, 0996140-M030SM, 0996340, M055014A, M0551014A, M0551017, M0551017A, MO551014A, MO551017A, SM09961, SMH12B31
  • LESTER5400

Fits; MERCURY MARINE - 35hp, 40E 2-Stroke 1978-1983, 40EH 2-Stroke 1981-1983, 40EL 2-Stroke 1978-1983, 40ELH 2-Stroke 1981-1983, 40HP 1970-1977, 50HP 1965-1975

Fits other Engines Please ask if yours not listed.
1 Year Warranty
