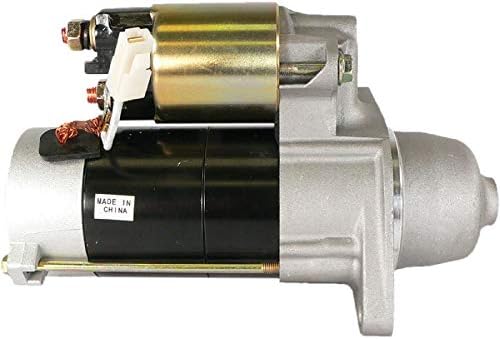

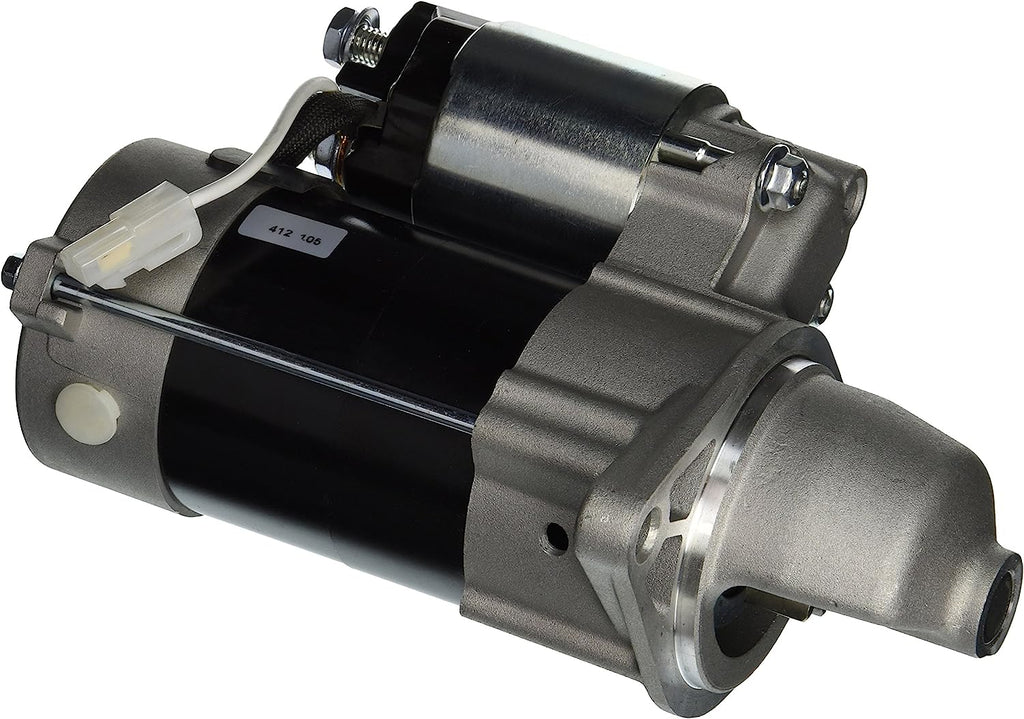

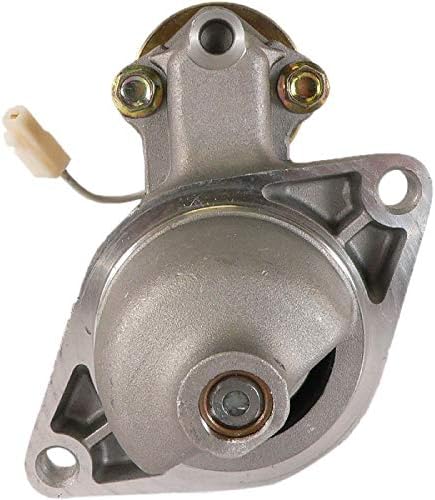

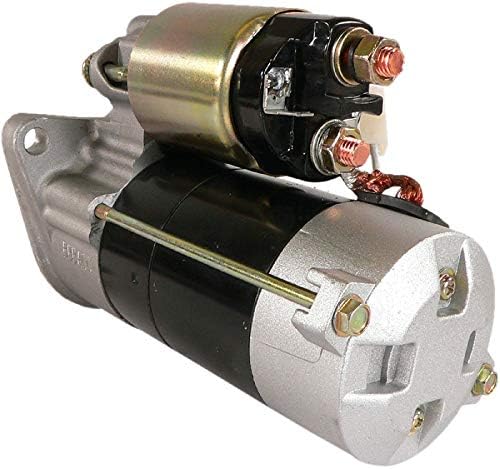

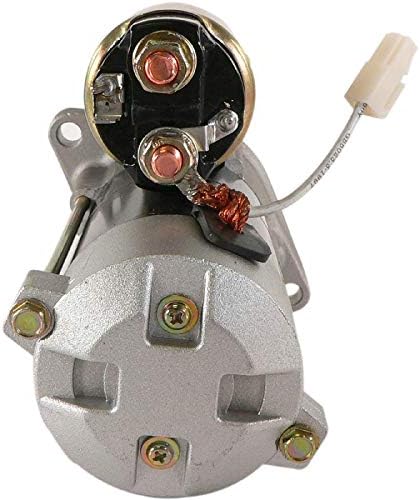

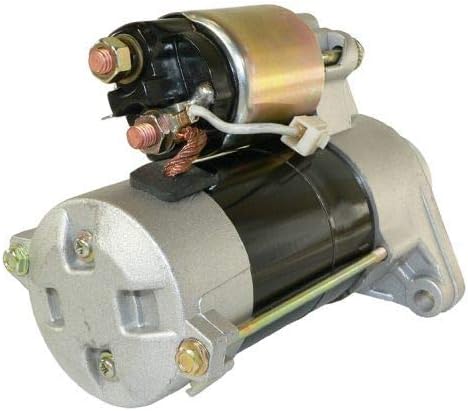

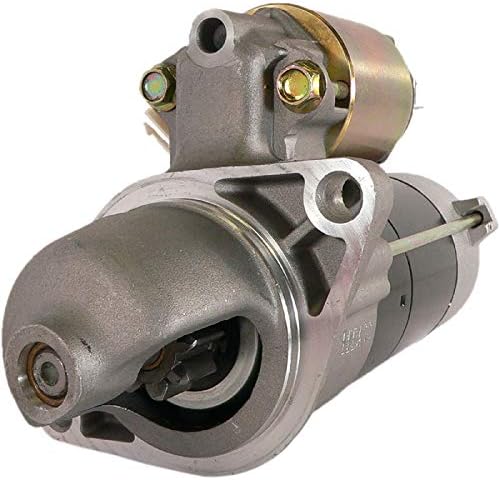

Starter for Kubota Tractor Mower Diesel F2260-R F2560-E F2560-R F3060-R ZD18 ZD21 G2160 G2160-R48S GR2100 TG1860 /1G023-63010 67980-31150 6A320-59210 K3511-81411
PRODUCT SPECS
| Item Condition | Aftermarket Part |
| Unit Type | Starter |
| Voltage | 12 |
| Rotation | CW |
| Teeth | 9 |
| KW | 0.9 |
| Starter Type | PLGR |
| Fits | KUBOTA F2260 FRONT MOWER KUBOTA 22HP DIESEL ENGINES |
APPLICATIONS LIST
| MAKE | TYPE | MODEL | YEAR | ENGINE |
| KUBOTA | Mowers - Front | F2260-R | 2005 -Bk | Kubota D1005-EFM 22HP Dsl |
| KUBOTA | Mowers - Front | F2560-E | 2005 -Bk | Kubota D1105-EFM 25HP Dsl |
| KUBOTA | Mowers - Front | F2560-R | 2005 -Bk | Kubota D1105-EFM 25HP Dsl |
| KUBOTA | Mowers - Front | F3060-R | 2005 -Bk | Kubota V1305-FM 30HP Dsl |
| KUBOTA | Mowers - Turf | ZD18 | 2005 -Bk | Kubota D722 18HP Dsl |
| KUBOTA | Mowers - Turf | ZD21 | 2005 -Bk | Kubota D782 21HP Dsl |
| KUBOTA | Tractors - Garden | G2160-R48S | 2005 -Bk | Kubota D782 21HP Dsl |
| KUBOTA | Tractors - Garden | G2160 | 2005 -Bk | Kubota D782 21HP Dsl |
| KUBOTA | Tractors - Garden | GR2100 | 2005 -Bk | Kubota 21HP Diesel |
| KUBOTA | Tractors - Lawn | TG1860 | 1997 - ON | Kubota D722E-GX 18HP Dsl |
| KUBOTA | Tractors - Lawn | ZD18 | All | |
| KUBOTA | Tractors - Lawn | ZD21 | All |
REPLACES THESE PART NUMBERS
| ANDRE NIERMANN | 0131151, 015400 |
| ARROWHEAD | ND228000-5400, ND9722809-540, ND9722809-591, ND9722809-709, ND9722809-748,SND0280, SND0481 |
| ARROWHEAD | SND0338, 410-52106 |
| Atlantic Quality Parts | 1700-0156, 1900-0112 |
| CARGO | 110447, 113211 |
| CASE | CLC102648501, CLC103886501 |
| DENSO | 228000-5400, 228000-5910, 228000-5911, 228000-7090, 228000-7091, 228000-7480, 228000-7481 |
| DENSO REMAN | 9722809-540, 9722809-591, 9722809-709, 9722809-748 |
| DIXIE | S-8941 |
| DIXIE NEW | 243-12141 |
| EMS | KB-101N |
| GENIE | 23456 |
| J&N Electrical Products | 410-52106, 410-52106R, 410-52168, 410-52238, 410-52238R, 410-52396 |
| KUBOTA | 1G023-63010, 1G023-63011, 1G023-63012, 67980-31150, 67980-31151, 6A320-59210, 6A320-59212, K3511-81410, K3511-81411 |
| LESTER | 18414, 18417, 19791 |
| LUCAS ELECTRICAL EUROPE | LRS02300 |
| MINNPAR | 57-3225 |
| PIC | 190-482, 190-6126, 190-6126A, 190-6127 |
| SOCIETA GENERALE RICAMBI | 17.81122 |
| WAI | 18414N, 18417N |
| WILSON | 91-29-5554, 91-29-5563, 91-29-5662 |
| WILSON HD | 91-29-5554, 91-29-5563, 91-29-5662 |
| WILSON SMALL ENGINE | 71-29-18414 |
| WOOD AUTO | STR30014 |
1 Year Warranty
