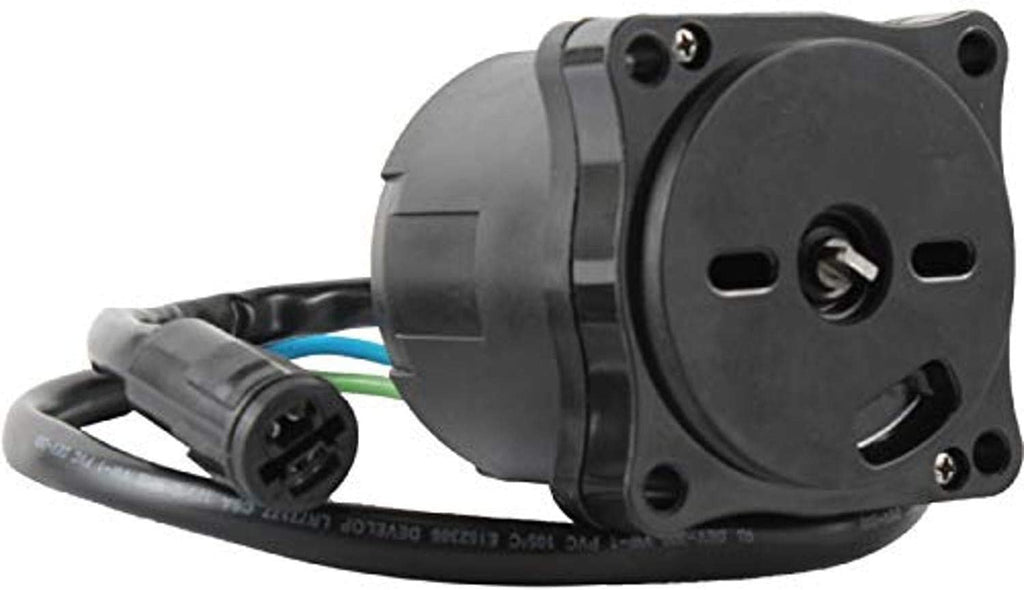

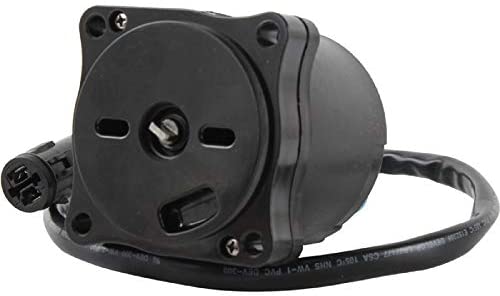

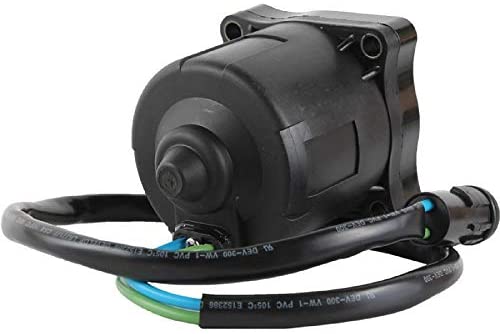

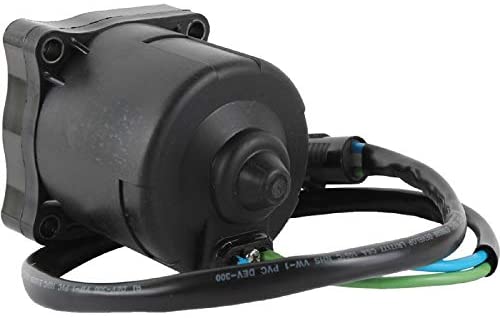

Tilt & Trim Motor 430-22120 Compatible with/Replacement for Honda BF75, BF90 2008-2019 6236, 36120-ZY9-003, 36120-ZY9-013, 430-22120

• Replaces OEM Numbers: ARCO MARINE: 6236, ARROWHEAD: 430-22120, HONDA: 36120-ZY9-003, 36120-ZY9-013, J & N: 430-22120
• Compatible With/Replacement For: HONDA BF75 2008-2019, BF90 2008-2019
• 100% New aftermarket Tilt & Trim Motor built to meet OEM specifications for Honda

Replaces OEM Numbers:
ARCO MARINE: 6236
ARROWHEAD: 430-22120
HONDA: 36120-ZY9-003, 36120-ZY9-013
J & N: 430-22120

Compatible With/Replacement For:
HONDA BF75 2008-2019, BF90 2008-2019

Suzuki

DF 70 2009-2016
DF 80 2009-2016
DF 90 2009-2016

Replaces 36120-ZY9-003, 36120-ZY9-013, 38100-87L00, 38100-87L01, 38100-87L02, 38100-87L03
Specs:

• Volt 12
• Condition New
• Rotation Direction Reversible
• OD 3.091"
• OD 78.500 mm
• Shaft OD 0.315"
• Shaft OD 8mm
• Length 113 mm
• Length 4.449"
• Shaft 2.3mm Keyed
• Current Type DC

12 Month Warranty
CM Marine
