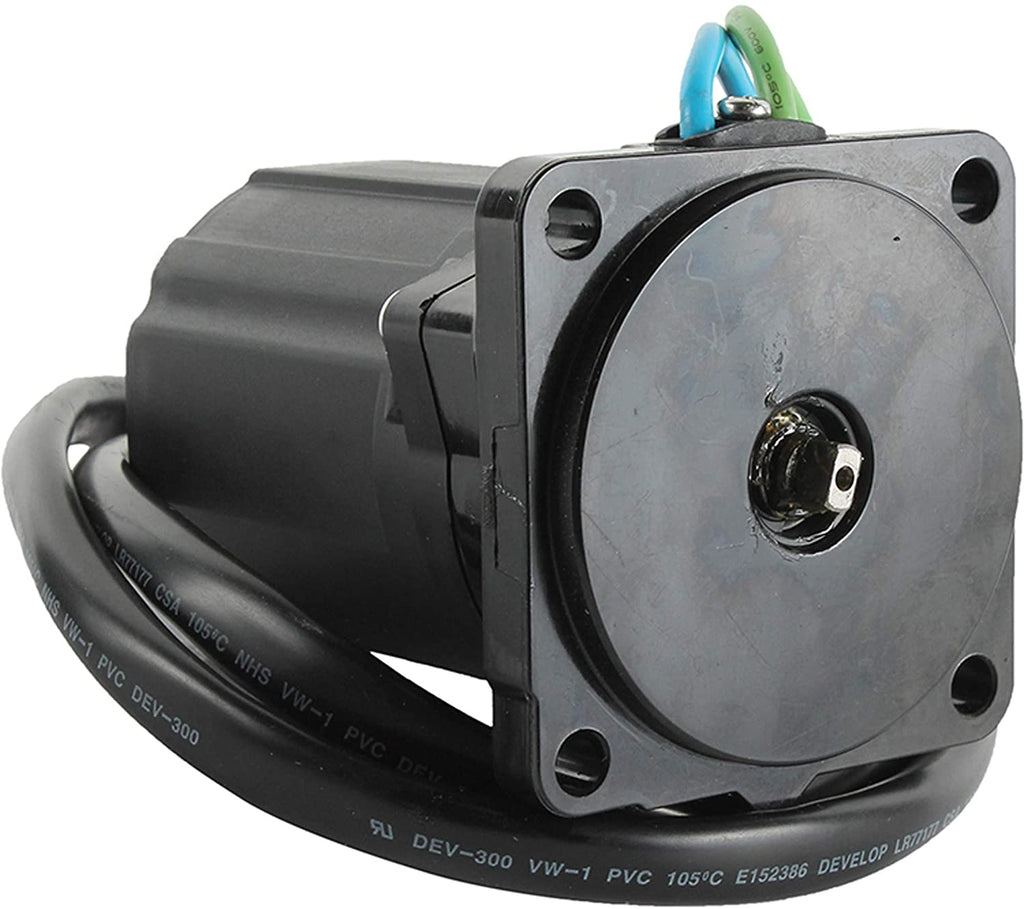

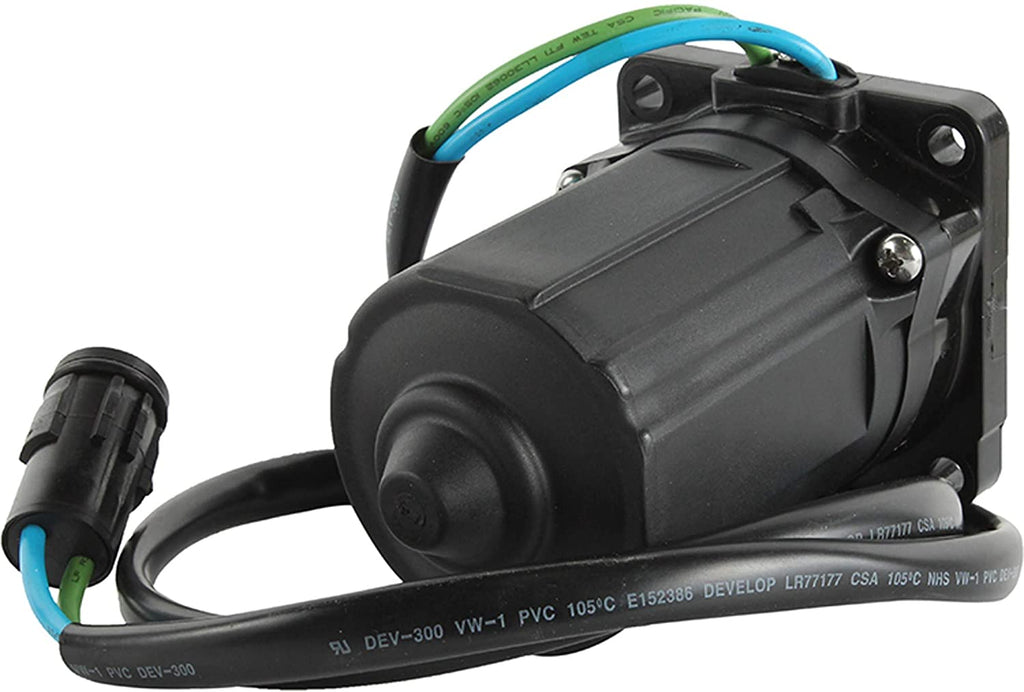

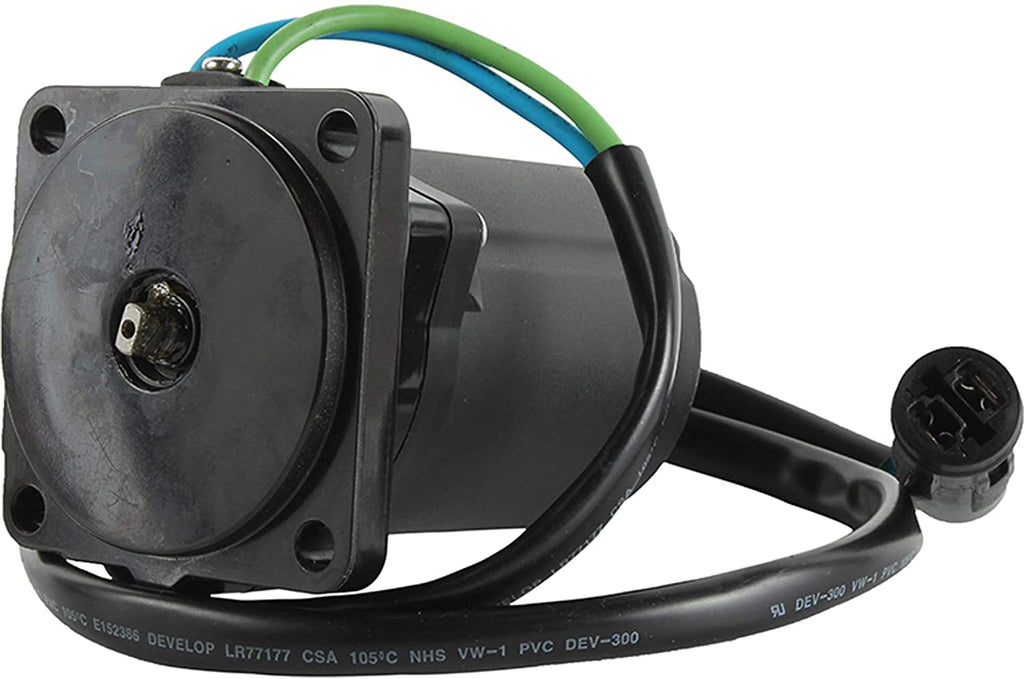

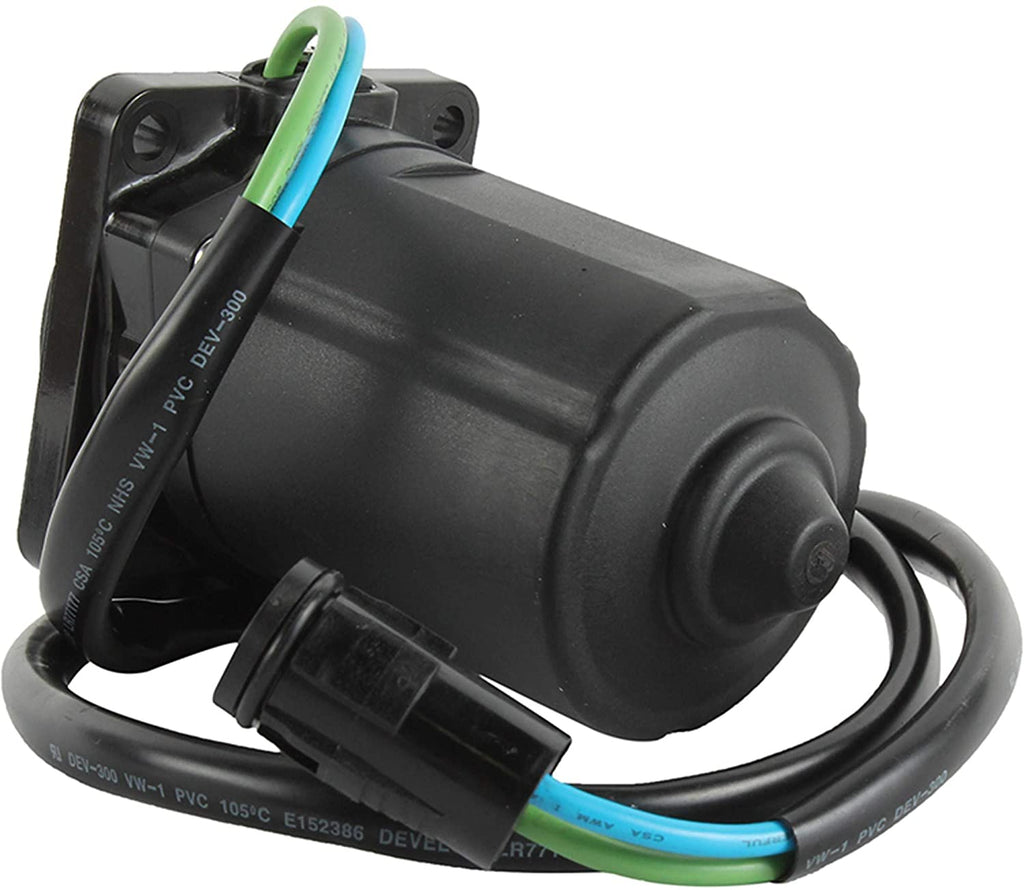

Tilt Trim Motor Honda BF40 BF50 2004-Onwards

In stock
Marine Trim Motor
CM Marine

New Tilt/Trim Motor For 2004-On Honda BF40, BF50 Engines 12-Volt 36120-ZW4-H12 6237

Used on the following applications:

  • Honda Engines (2004-On)
    • BF40
    • BF50
    • BF60
  • Suzuki 38100-88L12
  • 36120-ZZ3-003
  • ARCO 6237

 Interchanges / Cross References

Manufacturer No Manufacturer Name
6237 Arco Marine
36120-ZW4-H12 Honda

Voltage 12
Dimension Mounting Holes 62mm On Center; Mounting Ring 70mm OD; Armature Shaft Blade 8mm L x 4mm W x 6mm T; Field Case OD 67mm (Approx.); Field Case Length 100mm (To Rear Tip);
Brief HONDA BF40, BF50 ENGINES 2004-ON

Mercury - 827675002
40hp Lightning XR 50MH TRM107 2 wire 4 hole Mercury: 827675002

12 Month Warranty
