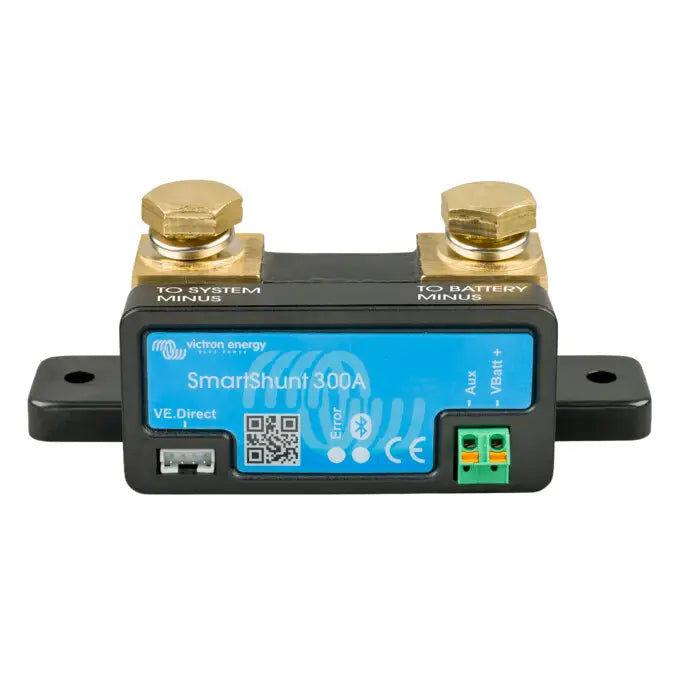

The Victron SmartShunt 300A is an intelligent all-in-one battery monitor that provides accurate real-time information about your battery system directly to your smartphone or tablet via Bluetooth. With no separate display required, the SmartShunt offers a clean, simple installation while still delivering all the essential battery monitoring data through the free VictronConnect app.

Ideal for caravans, motorhomes, boats, off-grid solar systems and backup power installations, the SmartShunt continuously measures battery voltage, current, state of charge, power consumption and remaining runtime, helping you maximise battery performance and extend battery life.

For larger Victron systems, the SmartShunt can also be connected to a Cerbo GX or other GX device via its VE.Direct port for remote monitoring through the Victron Remote Management (VRM) portal.

Benefits & Features

• Accurate 300A battery monitoring with 50mV precision shunt
• Built-in Bluetooth Smart for wireless setup and monitoring via the VictronConnect app
• No separate display required – your smartphone or tablet becomes the display
• Displays battery state of charge, voltage, current, power, amp-hours consumed and time remaining
• Stores historical battery data and performance trends
• VE.Direct communication port for integration with Cerbo GX and other GX devices
• Auxiliary input for monitoring a second battery voltage, midpoint voltage or optional temperature sensor
• Suitable for lead-acid, AGM, GEL and lithium battery systems
• Low power consumption for minimal battery drain
• Compact design for quick and tidy installation

Specifications

• Continuous Current Rating: 300A
• Shunt Rating: 300A / 50mV
• Supply Voltage Range: 6.5V – 70V DC
• Built-in Bluetooth: Yes
• VE.Direct Communication Port: Yes
• Auxiliary Input: Second battery voltage, midpoint monitoring or temperature sensor
• Battery Capacity Range: 1Ah – 9,999Ah
• Current Accuracy: ±0.4%
• Protection Rating: IP21
• Dimensions: 44mm (H) × 120mm (W) × 44mm (D)
• Weight: Approximately 0.4kg

The Victron SmartShunt 300A is the perfect choice for anyone wanting professional-grade battery monitoring without the need for a dedicated display, providing clear insights into battery performance and helping ensure maximum system reliability.

https://www.victronenergy.com/upload/documents/Datasheet-SmartShunt-EN.pdf
