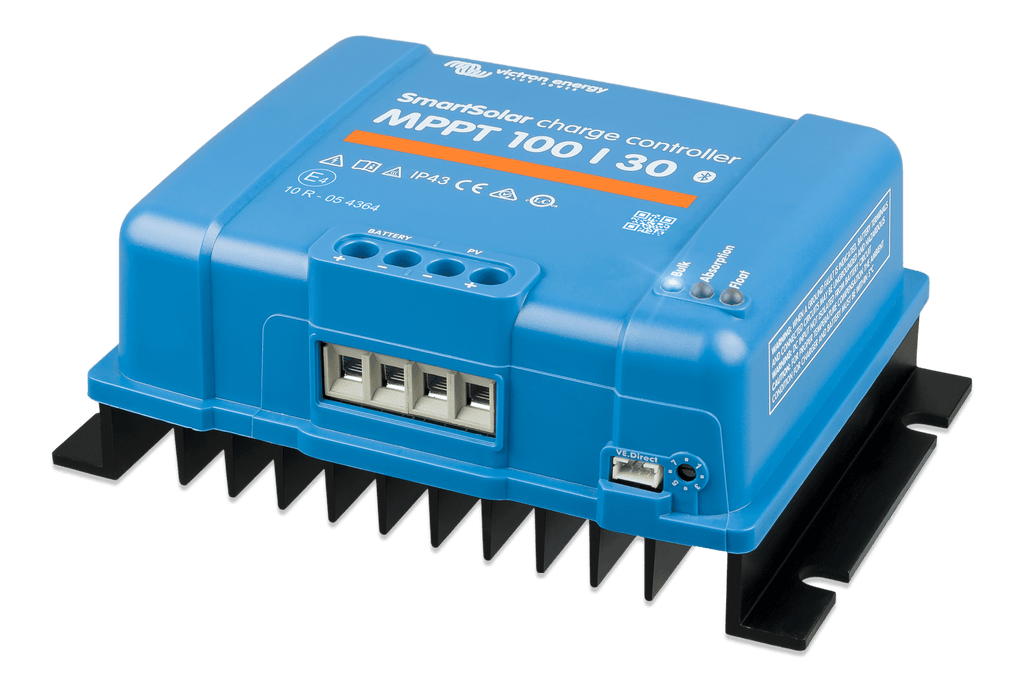

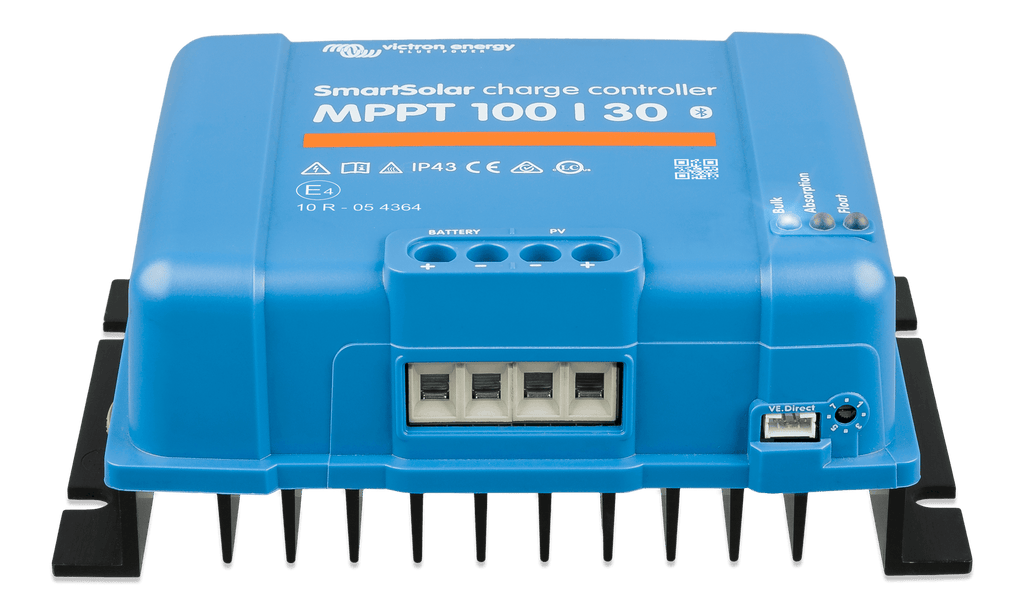

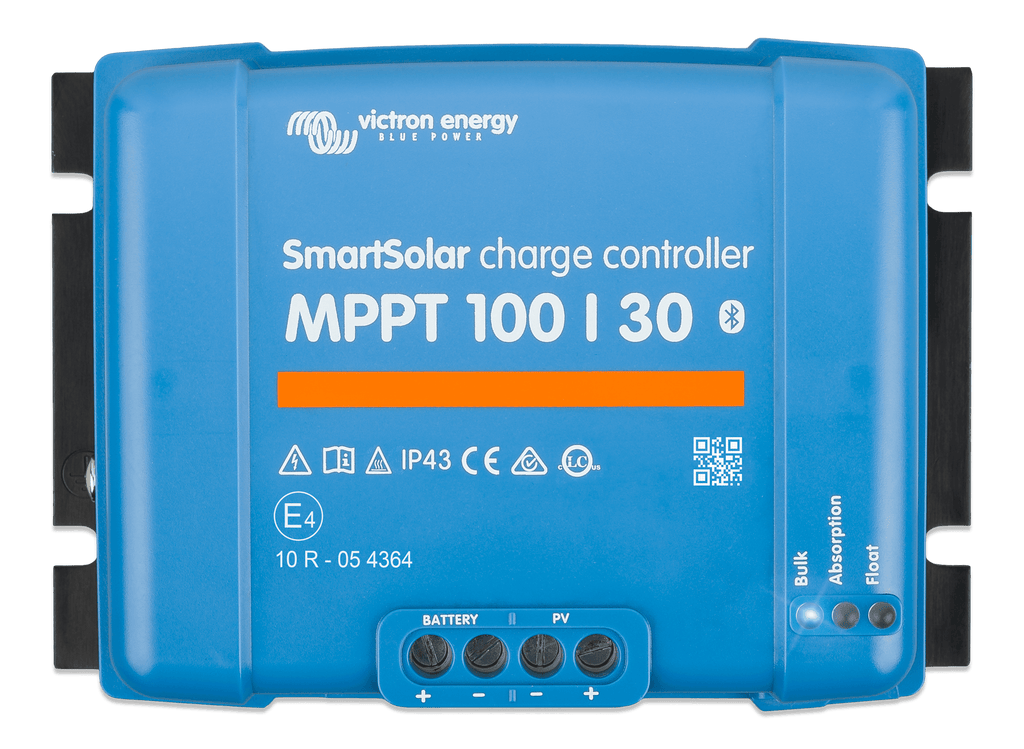

The Victron SmartSolar MPPT 100/30 solar charge controller is designed to maximise the energy harvested from your solar panels and efficiently charge your batteries. Featuring ultra-fast Maximum Power Point Tracking (MPPT) technology, it continually monitors your solar panel output to ensure every available watt is captured, even in changing weather conditions or partial shading.

With built-in Bluetooth Smart, the SmartSolar 100/30 can be easily configured and monitored using the VictronConnect app on your smartphone, tablet, or computer. It supports both 12V and 24V battery systems with automatic voltage detection and uses intelligent charging algorithms to help extend battery life and optimise performance.

Benefits & Features

• Ultra-fast Maximum Power Point Tracking (MPPT)
• Advanced Maximum Power Point Detection for improved performance under partial shading
• Outstanding conversion efficiency of up to 98%
• Natural convection cooling for silent operation
• Automatic 12V/24V battery voltage recognition
• Fully programmable and flexible charging algorithms
• Over-temperature protection with automatic power derating
• Built-in Bluetooth Smart for wireless setup and monitoring via the VictronConnect app
• Supports a wide range of battery types including lead-acid and lithium
• Suitable for solar arrays with a maximum PV open circuit voltage of 100V

Specifications

• Rated Charge Current: 30A
• Maximum PV Open Circuit Voltage: 100V
• Battery Voltage: 12V / 24V (automatic detection)
• Maximum PV Power: 440W (12V) / 880W (24V)
• Maximum Efficiency: 98%
• Dimensions: 130mm (H) × 186mm (W) × 70mm (D)
• Weight: 1.3kg

The Victron SmartSolar MPPT 100/30 is an ideal solution for caravans, motorhomes, boats, off-grid systems, and remote power installations where reliable, efficient solar charging is essential.
